Detailed description:

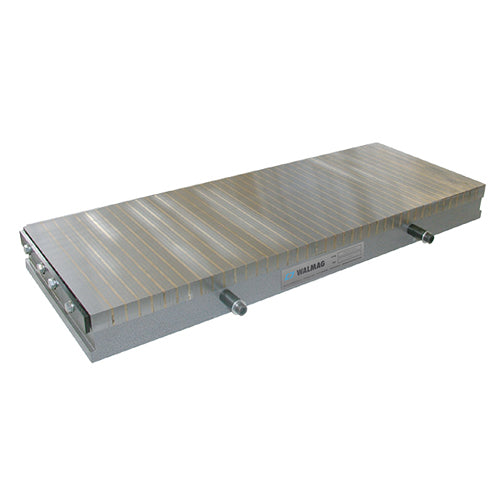

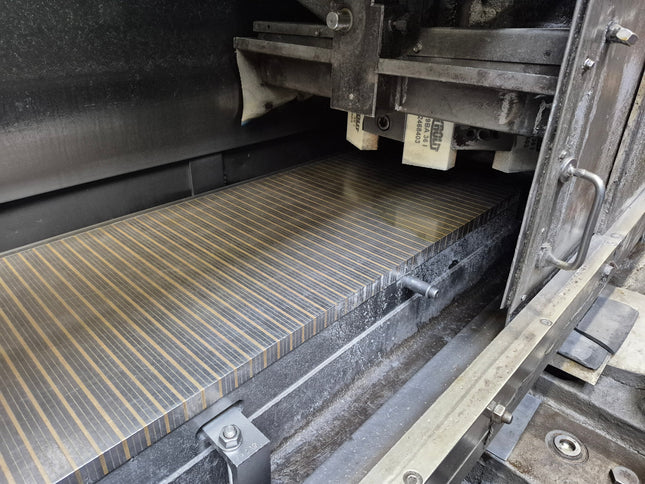

Unigrip is an electromagnetic chuck with which you can easily manage general surface grinding. For a favourable price, you get a good holding force, thanks to which you can quickly machine workpieces with different dimensions after clamping.
To make production more efficient, you can use the control unit offers easy activation by pressing the button or regulation of the holding force by turning the potentiometer. This gives you a good holding force in your workshop or industrial manufacturing plant.
Unigrip chucks are constructed for 110 V(DC) and for connection to our control unit with regulation of the holding force and automatic demagnetization.
Important parameters:
Application: Grinding
Technology: Electromagnet
Holding force: 90 N/cm2
Min. workpiece size: 25 x 25 x 5 mm
Poles: Transverse
Regrinding limit: 6 mm
Pole pitch: 19 mm, further refined 5+0.5/5+0.5/5+3 steel/brass
Guarantee: 2 years
Scope of supply:
Magnetic chuck
Side and rear stop blocks
Set of clamps 3 m power supply cable
Certificate
Instructions for use
Use:
Clamping of medium to large workpieces during general grinding
Parameters
Model
W (mm)
L (mm)
H (mm)
Wattage (W)
Weight (kg)
UNIG300600
300
600
73
198
96
UNIG400800
400
800
73
253
162
UNIG3001000
300
1000
73
235
172
UNIG4001000
400
1000
73
384
210
UNIG5001000
500
1000
73
443
251
UNIG6001000
600
1000
73
568
358

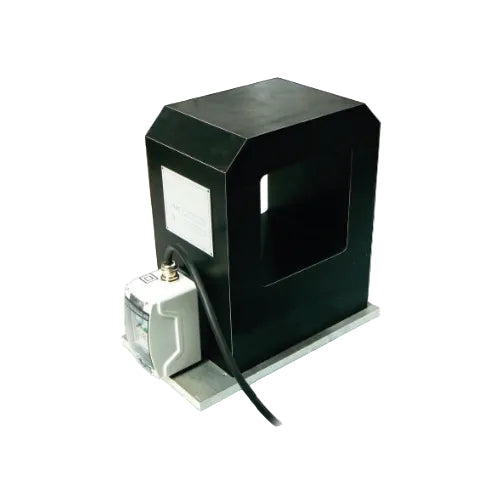

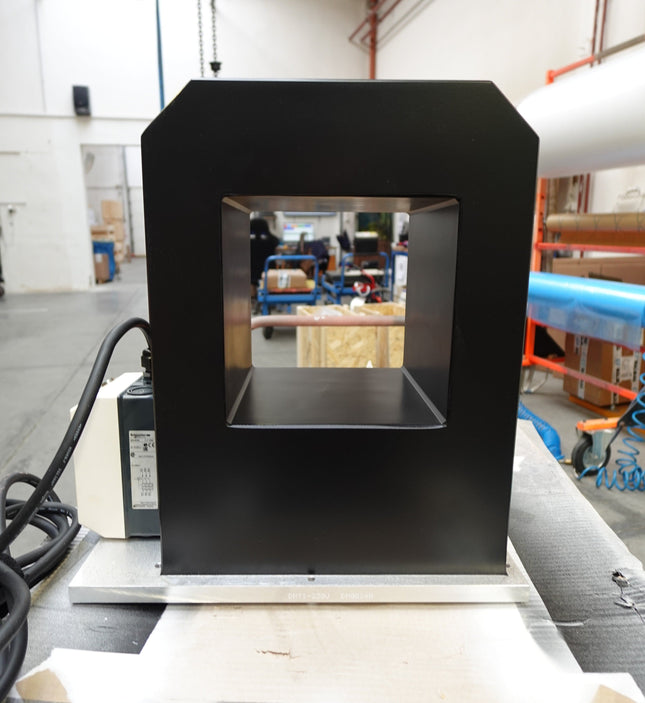

The TDM tunnel demagnetiser uses an alternating magnetic field to remove residual magnetism from ferromagnetic components. As the components pass through the tunnel, they are gradually demagnetised.
The effectiveness of the demagnetisation depends on the correct selection of the passage opening size in relation to the dimensions of the components. To achieve the desired result, it is therefore important to select the appropriate type of equipment for the specific application.
The demagnetiser is designed for integration into production lines, where it enables continuous demagnetisation of components without the need for manual handling.
Key parameters:
Application: Demagnetisation of ferromagnetic components
Technology: Electrical (alternating magnetic field)
Duty cycle: 100% (continuous operation)
Power supply: 230 / 400 V / 50 Hz (depending on model)
Warranty: 2 years
Additional information:
On request, we can supply a tunnel-type demagnetiser, including a conveyor belt, tailored to your specific application. Please contact us for a proposal for the optimal solution.
Applications
Continuous demagnetisation of parts on production lines
Suitable for mass-produced components of various shapes and sizes
For use in combination with belt or roller conveyors
Elimination of residual magnetism without interrupting production
Package contents:
Demagnetiser
Operating instructions
Parameters
Model
Aperture (mm)
Power supply (VAC/Hz)
TDM5400
600 x 420
400/50
TDM4400
450 x 450
400/50
TDM2230
255 x 255
230/50
TDM2400
255 x 255
400/50
TDM1230
180 x 180
230/50
TDM1400
180 x 180
400/50

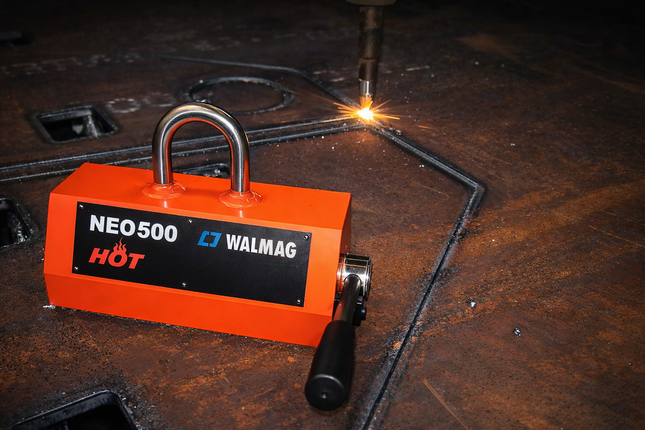

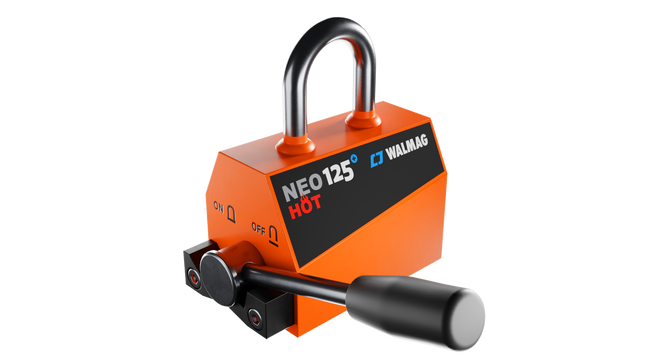

The Neo Hot permanent load-handling magnet is a high-temperature variant of the tried-and-tested Neo range. It is designed for handling ferromagnetic materials where the load temperature exceeds the capabilities of standard permanent magnets.
Thanks to special magnetic materials, it enables the safe handling of materials at temperatures of up to 180 °C without compromising on safety or operator comfort.
Like other magnets in the Neo range, it is equipped with the Easy Switch system for convenient one-handed operation. Each magnet undergoes testing using the Air Gap Test method, which simulates real-world conditions and verifies its safe operation. Its robust construction and safety rating of 3+ in accordance with EN 13155 ensure reliable operation even in demanding industrial environments.
Unique features:
Easy Switch: The ergonomic control lever allows for quick and convenient switching of the magnet on and off, even during frequent use.
Air Gap Test: Each magnet is tested using an air gap, which simulates real-world operating conditions and verifies safe operation.
Stainless steel lifting eye: The durable stainless steel lifting eye ensures a long service life even in demanding industrial environments.
Safety factor 3+: The magnet complies with the requirements of standard EN 13155 and provides a high level of safety during handling.
Capacity table directly on the magnet: Load capacities and operating parameters are always easily accessible directly on the unit.
Compact design: High load capacity combined with low weight facilitates handling and expands the range of applications.
5-year warranty: We provide a 5-year warranty on the magnetic system.
Key parameters
Applications: Lifting and handling of ferromagnetic materials
Technology: Permanent magnet
Lifting capacity for flat material: up to 2,000 kg
Lifting capacity for round material: up to 1,000 kg
Maximum material temperature: 180 °C
Safety factor: 3+ in accordance with EN 13155
Warranty on the magnetic system: 5 years
Applications
Handling of hot cut-to-size sheets, forgings and castings
Handling of heated sheet metal, sections and structural components
Operations involving higher material temperatures
Handling of both flat and circular workpieces
Loading, unloading and moving of material in production
Contents of the package
Neo Hot permanent magnet
Operating instructions
Test certificate
Parameters
Model
W (mm)
L (mm)
H (mm)
Eye diameter (mm)
Weight (mm)
Max. tested capacity (kg)
Workload limit flat materials (kg)
Workload limit round materials (kg)
Min/max diameter (mm)
NEOL125H
60
93
120
10
3
450
125
40
50/100
NEOL250H
100
152
180
16
10
800
250
125
60/200
NEOL500H
120
246
180
20
21
1600
500
250
65/270
NEOL1000H
146
306
236
20
40
3200
1000
500
100/300
NEOL1500H
165
374
273
20
69
4700
1500
750
150/350
NEOL2000H
165
478
273
20
90
6200
2000
1000
150/350
Detailed description:

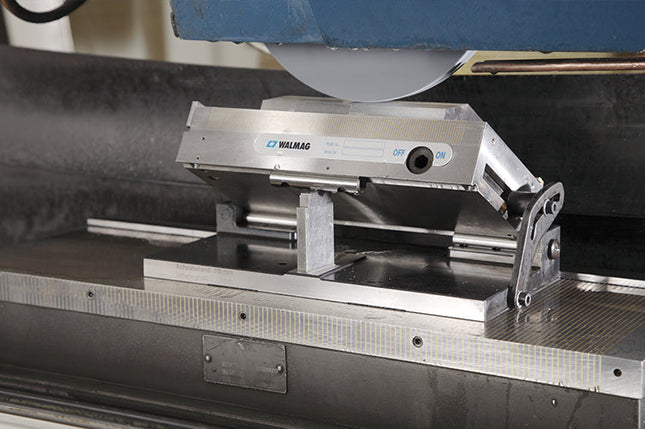

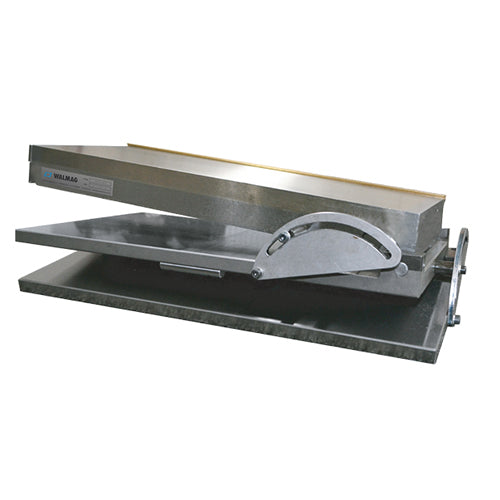

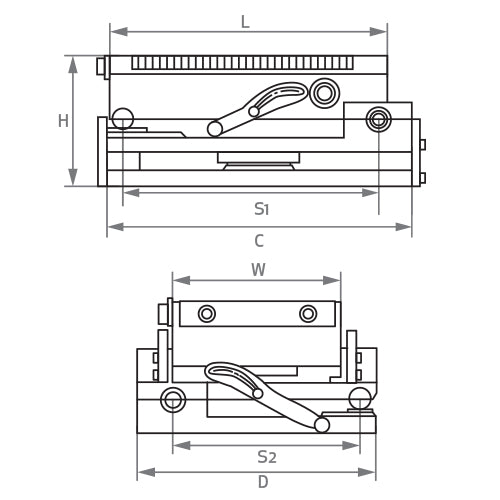

The Fixar compound sine table is a high precise device designed for workpiece clamping during precise angle grinding, electrical discharge machining and measuring. It enhances the efficiency of work during machining because it offers the possibility to tilt the workpiece on both axes with high accuracy.
You set the angles simply by using the end gauges based on the sine principle. Unique design of the bearing along with the hardened base plate and the side guidance provide extreme accuracy even after a long period of use.

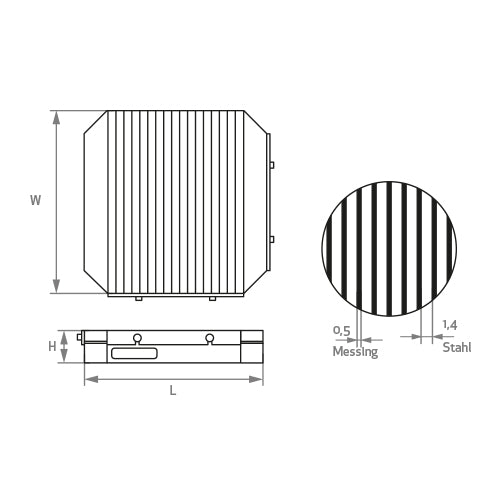

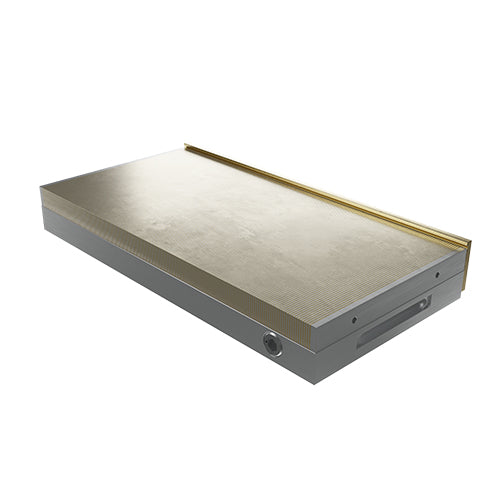

The Neomicro magnetic chuck is part of the transverse sine table as it is stable and has a high holding force without deformation of the workpiece up to 100 N/cm2.
Important parameters:
Application: Grinding, measuring, EDM
Technology: Permanent
Holding force: 100 N/cm2
Min. workpiece size: 4 x 4 x 1 mm
Poles: Transverse
Regrinding limit: 7 mm
Pole pitch: T1.9 1.4+0.5 mm (steel/brass)
Guarantee: 2 years
Additional information:
The Fixar compound sine table allows tilting on both axes at the same time. If you only need tilting on one axis (longitudinal or transverse), have a look at the Fixar simple sine table.
Scope of supply:
Sine table
Allen keys
Table for quick angle setting
Instructions for use
Use:
Accurate angle surface grinding Electrical discharge machining – EDM
Measuring
Parameters
Model
W (mm)
L (mm)
H (mm)
C x D (mm)
S (mm)
Weight (kg)
SINEC100175
100
175
104
210 x 140
165/110
15
SINEC130255
130
255
120
290 x 170
245/140
32
SINEC150300
150
300
123
335 x 190
340/160
49,5
SINEC200400
200
400
124
435 x 240
390/210
73
Detailed description:

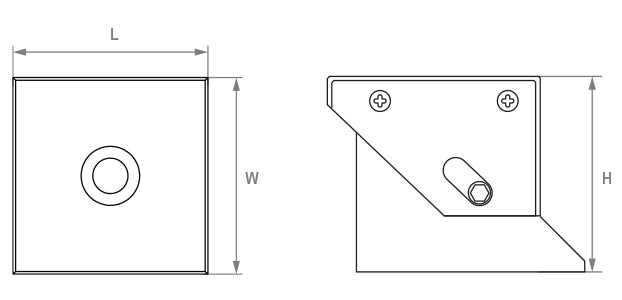

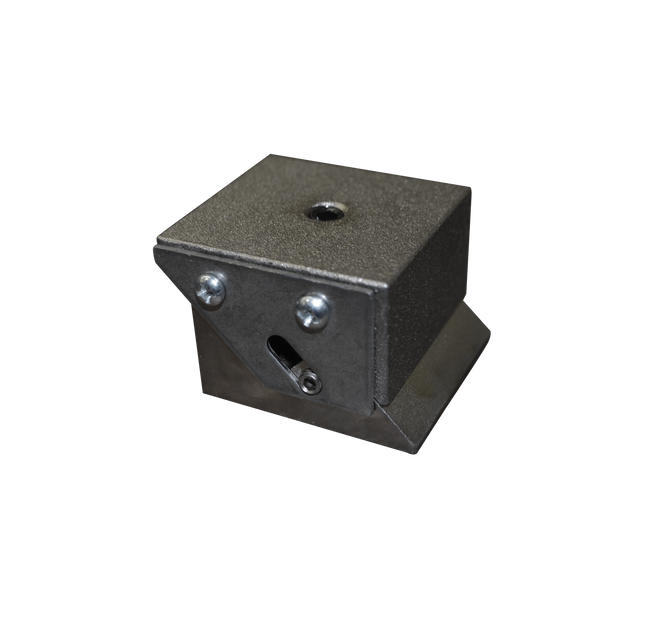

Flexible pole extensions are able to eliminate irregularities up to 5 mm in size. They make it possible to obtain workpiece flatness without the necessity of using complex bedding. They must be combined with at least 3 fixed pole extensions to create a supporting plane for the workpiece.
By using flexible pole extensions, machining efficiency is increased because you can carry out several operations at the same time thanks to the accessibility from 5 sides. Installation or re-arrangement of the extensions on the work surface of the chuck is easily done with screws.
Detailed description:

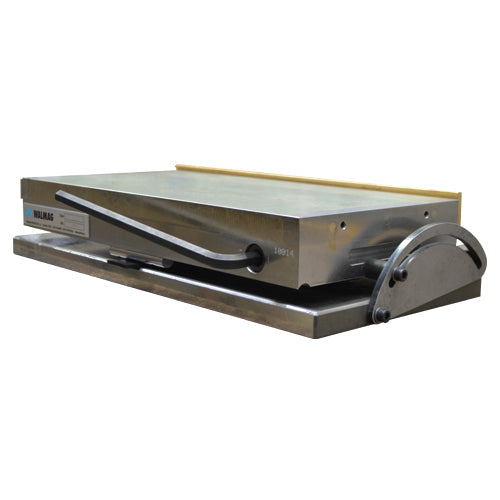

The Fixar simple sine table is a highly precise tool, which is intended for reliable workpiece clamping during precise angle grinding, electrical discharge machining and for measuring purposes. It allows the setting of angles using a gauge in the range of 0 – 45° with high accuracy.
You set angles using end gauges based on the sine principle. The unique design of the bearing along with the hardened base plate and side guidance provide extreme precision even after a long period of use.
The sine table is equipped with a Neomicro permanent magnetic chuck, which is simple and low maintenance.
Important parameters:
Application: Grinding, measuring, EDM
Technology: Permanent
Holding force: 100 N/cm2
Min. workpiece size: 4 x 4 x 1 mm
Poles: Transverse
Regrinding limit: 7 mm
Pole pitch: T1.9 1.4+0.5 mm (steel/brass)
Guarantee: 2 years
Additional information:
The Fixar simple sine table allows tilting either on the longitudinal or the transverse axis – depending on the model you choose. If you require tilting on both axes at the same time, have a look at the Fixar compound sine table.
Scope of supply:
Sine table
Allen keys
Table for quick angle setting
Instructions for use
Use:
Accurate angle surface grinding
Electrical discharge machining -EDM
Measuring
Parameters
Model
W (mm)
L (mm)
H (mm)
C x D (mm)
S (mm)
Weight (kg)
SINES70140
70
140
67
130 x 140
55
7
SINES130255
130
255
76
295 x 145
115
20
SINES150250
150
250
79
290 x 165
135
20
SINES150300
150
300
79
340 x 165
135
27
SINES150350
150
350
87
390 x 165
135
34,5
SINES150450
150
450
87
490 x 165
135
44
SINES200400
200
400
88
440 x 215
185
52
SINES300600
300
600
95
660 x 320
285
121
Detailed description:

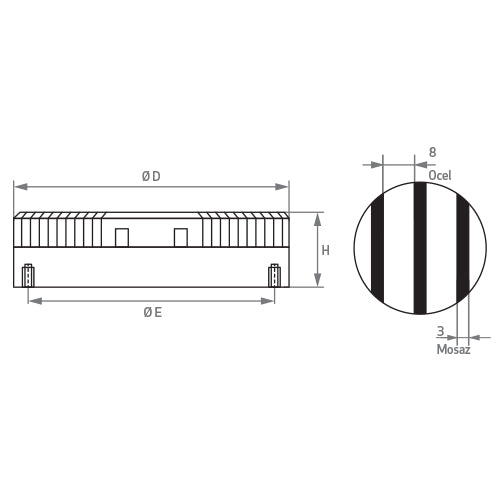

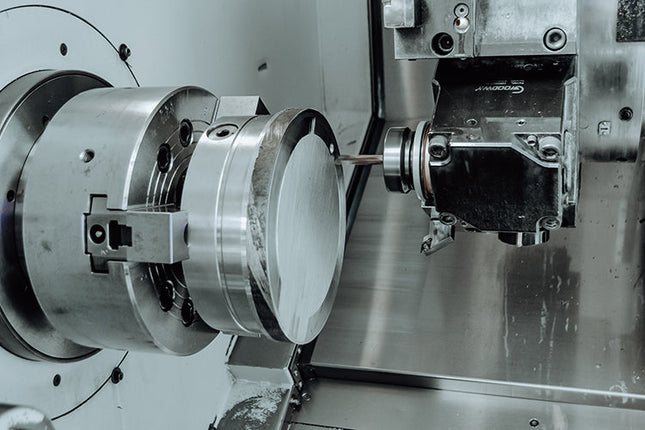

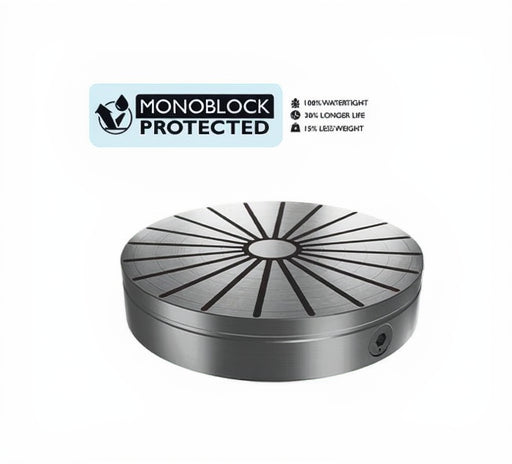

The Neostar permanent magnetic chuck is especially designed for clamping workpieces for turning and circular grinding. The top plate with radial poles allows easy and efficient machining of the front, inner and outer diameter of the workpiece in one operation – without the need to release and re-clamp it.
It features a maximum holding force up to 140 N/cm2 – depending on the chuck size and dimensions of the workpieces to be machined. The robust steel base is provided with 2 – 4 threads on the bottom for attachment to a suitable flange.
Important parameters:
Application: Turning, circular grinding
Technology: Permanent
Holding force: 140 N/cm2
Poles: Radial
Regrinding limit: 5 mm
Guarantee: 2 years
Additional information:
You can select centre drilling, a precise centre hole, an additional top plate with T-slots or a set of pole extensions. If you have any questions or if anything is unclear, we will be happy to advise you.
Use:
Turning and grinding of round and ring-shaped workpieces
Facing work, internal and external diameter machining is possible separately or in one operation
Scope of supply:
Magnetic chuck
Allen key
Certificate
Instructions for use
Parameters
Model
D (mm)
H (mm)
D1 (mm)
E (mm)
F (mm)
Weight (kg)
Number of poles
NEOS130
130
57
15
-
100
5
10
NEOS150
150
57
15
80
120
7,3
10
NEOS200
200
57
20
110
180
13
12
NEOS250
250
70
30
140
220
25
16
NEOS300
300
73
38
180
260
37
16
NEOS350
350
73
40
220
300
49
20
NEOS400
400
74
40
260
340
68
20
NEOS500
500
78
50
300
400
109
24
NEOS600
600
78
90
350
450
172
30
NEOS700
700
78
90
350
450
234
30
NEOS800
800
110
100
400
700
420
30

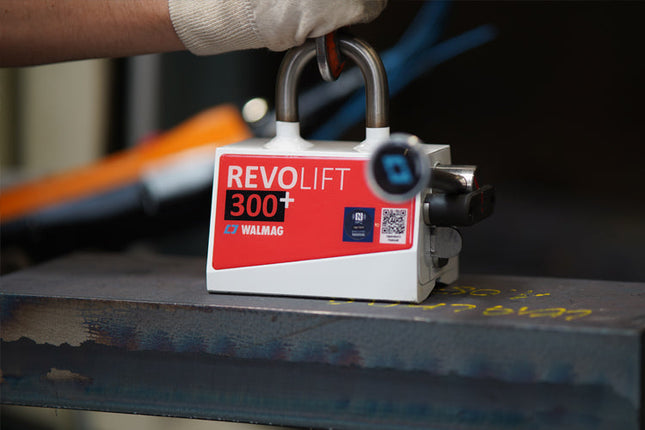

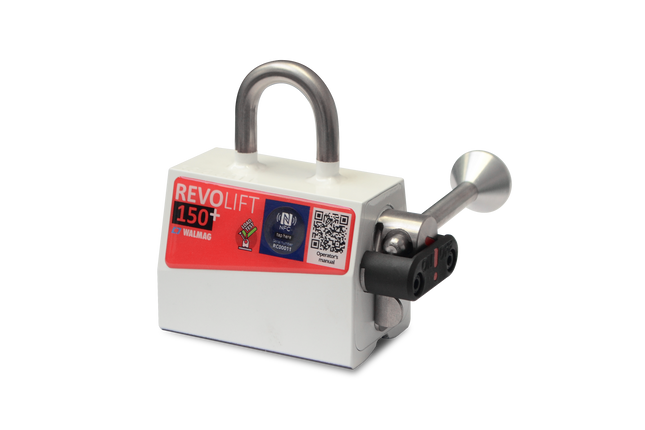

Revolift represents a new generation of permanent lifting magnets for the day-to-day handling of steel materials. It is designed for lifting both flat and circular workpieces and combines a high level of safety with ease of use.
Compared to standard permanent magnets, it offers a range of practical improvements that enhance user comfort and facilitate the monitoring of safe lifting. These include, for example, the Load Test function, an ergonomically positioned control handle and an integrated NFC chip providing access to documentation and test reports.
Its robust construction, durable markings and long service life make the Revolift ideal for everyday use in industrial settings.
Unique features:
Load Test function: Allows you to verify the suitability of the lift before handling, particularly for materials with unknown properties, air gaps or irregular shapes.
Ergonomic handle: The position and shape of the handle ensure more comfortable control and better handling during everyday use.
Clear safety markings: New labels make it easier to identify the magnet’s load capacities and operating conditions.
Integrated NFC chip: Quick access to the user manual, certificates and test reports via a smartphone.
Online manual: The QR code on the label takes you to the operating instructions, which simplifies and ensures safety when using the lifting magnet.
Scratch and dust resistance: Both the construction and the labelling are designed for long-term use in industrial environments.
Key specifications:
Applications: Lifting and handling of ferromagnetic materials
Technology: Permanent magnet
Lifting capacity for flat material: up to 2,000 kg
Lifting capacity for round material: up to 1,000 kg
Maximum material temperature: 80 °C
Safety factor: 3+ (in accordance with EN 13155)
Warranty on the magnetic system: 5 years
Applications:
Handling of steel sheets, blocks and cut-to-size parts
Lifting of sections, beams and structural elements
Handling of round timber and cylindrical workpieces
Operation of machine tools, saws and cutting stations
Loading, unloading and moving of materials in production and warehouses
Contents of the package
Magnet with a label featuring an integrated NFC chip
Safety poster
Certificate
Model
W (mm)
L (mm)
H (mm)
Eye diameter (mm)
Weight (kg)
Workload limit flat materials (kg)
Workload limit round materials (kg)
Min/max diameter (mm)
REVO150
60
97
123
10
3,1
150
65
50/95
REVO300
100
152
180
16
10,4
300
150
62/197
REVO600
120
246
184
20
20,6
600
300
95/230
REVO1000
146
305,5
241
20
40
1000
500
90/299
REVO2000
165
492
285
20
98,7
2000
1000
160/300

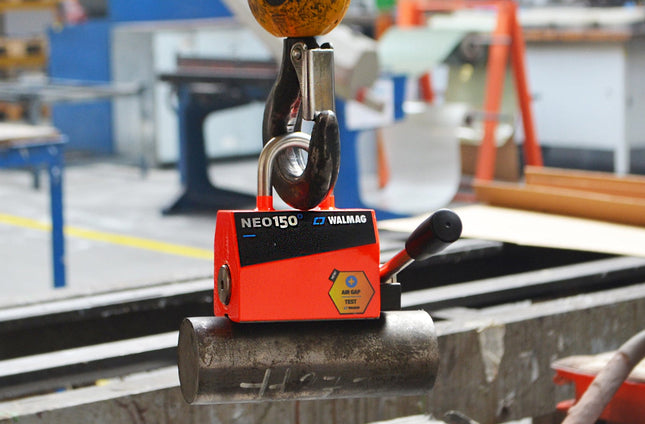

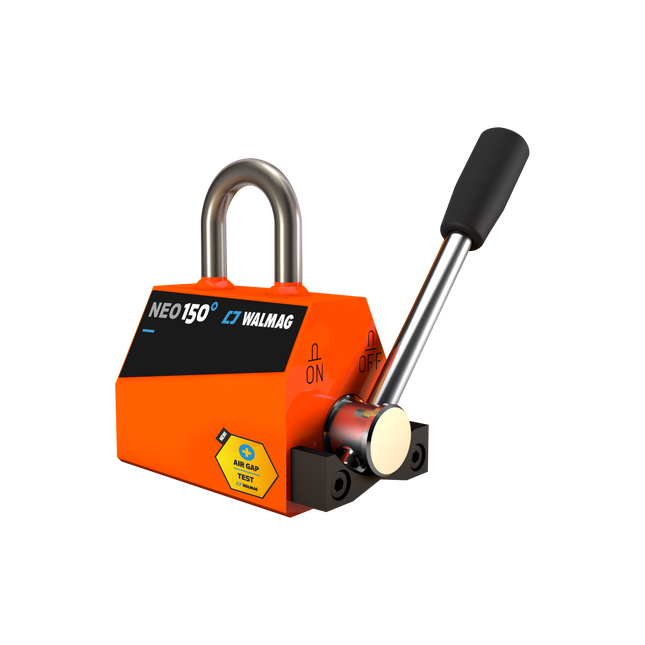

The Neo permanent load-lifting magnet is a tried-and-tested solution for handling steel materials across a wide range of industrial applications. Thanks to the use of powerful neodymium magnets, it achieves a high load-bearing capacity whilst maintaining compact dimensions and a low weight. The magnet is suitable for handling both flat and circular workpieces and enables quick and easy lifting without the need for an electrical power supply. Each magnet is tested using the Air Gap Test, which simulates real-world operating conditions and verifies the safety of its use. Its robust construction, high-quality components and safety factor of 3+ in accordance with EN 13155 ensure reliable operation even in demanding industrial environments.
Unique features:
Easy Switch: The ergonomic control lever allows for quick and convenient activation and deactivation of the magnet, even during frequent use.
Air Gap Test: Each magnet is tested with an air gap that simulates real-world operating conditions and verifies safe operation.
Stainless steel lifting eye:The durable stainless steel lifting eye ensures a long service life even in demanding industrial environments.
Safety factor 3+: The magnet complies with the requirements of standard EN 13155 and provides a high level of safety during handling.
Capacity table directly on the magnet: Load capacities and operating parameters are always easily accessible directly on the unit.
Compact design: High load capacity combined with low weight facilitates handling and expands the range of applications.
5-year warranty: We provide a 5-year warranty on the magnetic system.
Key parameters:
Applications: Lifting and handling of ferromagnetic materials
Technology: Permanent magnet
Lifting capacity for flat material: up to 2,000 kg
Lifting capacity for circular material: up to 1,000 kg
Maximum material temperature: 80 °C
Safety factor: 3+ in accordance with EN 13155
Warranty on the magnetic system: 5 years
Applications:
Handling of steel sheets, blocks and cut-to-size pieces
Lifting of sections, beams and structural components
Handling of round timber and cylindrical workpieces
Operation of machine tools, saws and cutting stations
Loading and unloading of materials in warehouses and production facilities
Contents of the package
Neo permanent magnet
Operating instructions
Test certificate
Parameters
Model
W (mm)
L (mm)
H (mm)
Eye diameter (mm)
Weight (kg)
Workload limit flat materials (kg)
Workload limit round materials (kg)
Min/max diameter (mm)
NEOL150
60
93
120
10
3
150
65
50/100
NEOL300
100
152
180
16
10
300
150
60/200
NEOL600
120
246
180
20
21
600
300
65/270
NEOL1000
146
306
236
20
40
1000
500
100/300
NEOL1500
165
374
273
20
69
1500
750
150/350
NEOL2000
165
478
273
20
90
2000
1000
150/350
Detailed description:
The Neomill Compact pallet is a magnetic chuck equipped with a robust and waterproof structure. Durability and strong neodymium magnets make it suitable for workpiece clamping in the most demanding machining applications such as hard and high speed milling.
The versatility of the chuck is provided by the top plate with transverse pole division, which clamps both small and sizeable components perfectly with its holding force.
Optionally, the chuck can be equipped with practical handles with which the chuck can be moved easily to another machine or to a table for picking operations outside the machine.
Important parameters:
Application: Milling, surface grinding
Technology: Permanent
Holding force: 160 N/cm2
Min. workpiece size: 25 x 25 x 6 mm
Poles: Transverse
Regrinding limit: 10 mm
Pole pitch: T15 11+4 mm (steel/epoxy resin)
Guarantee: 2 years
Scope of supply:
Magnetic chuck
Allen key
Instructions for use
Use:
Clamping of small up to large workpieces
t
Parameters
Model
W (mm)
L (mm)
H (mm)
Weight (kg)
NEOMC240240
240
240
50
21
NEOMC280280
280
280
50
28
NEOMC320320
320
320
50
37
Detailed description:
This top plate has a solid waterproof construction and its clamping force of up to 160 N/cm2 ensures high workpiece stability even in the most difficult operations, such as milling, grinding, drilling, and planing.
Important parameters:
Application: Milling
Technology: Permanent
Clamping force: 160 N/cm2
Min. workpiece size: 25 x 25 x 6 mm
Pole pitch: T15 11+4 mm - steel/brass
Poles: Transverse
Guarantee: 2 years
Use:
Milling
Grinding
Drilling
Planing
Package content:
Side and end stop blocks
Set of clamps
Parameter
Catalog number
W (mm)
L (mm)
H (mm)
Weight (kg)
NEOM150250
150
250
55
17
NEOM150300
150
300
55
20
NEOM150350
150
350
55
23,5
NEOM150450
150
450
55
31
NEOM200300
200
300
60
30
NEOM200400
200
400
60
39
NEOM200450
200
450
60
43
NEOM200500
200
500
60
48
NEOM200600
200
600
60
55
NEOM250400
250
400
65
50
NEOM250500
250
500
65
52
NEOM250600
250
600
65
85
NEOM300300
300
300
65
44
NEOM300400
300
400
65
64
NEOM300500
300
500
65
72
NEOM300600
300
600
65
87
NEOM400400
400
400
65
80
Detailed description:

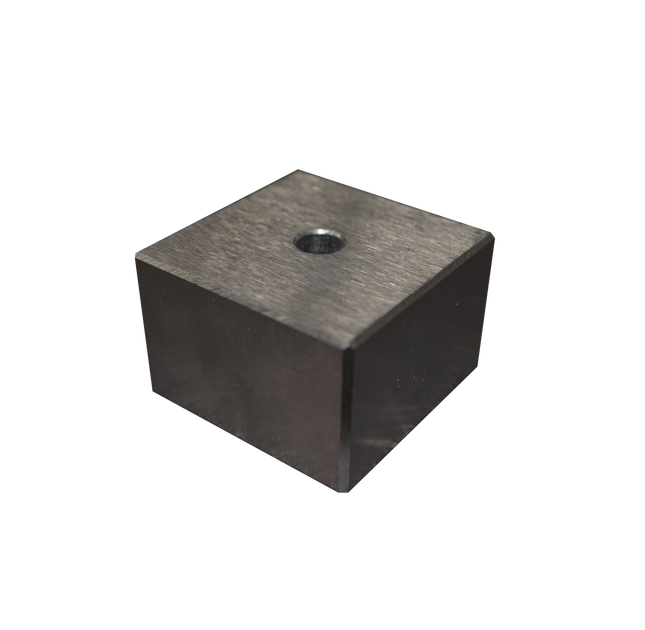

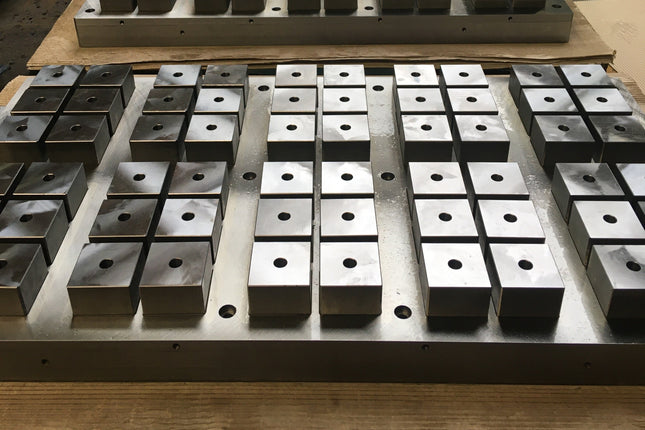

Fixed pole extensions are a useful and inexpensive tool in small-scale production when you need to raise the workpiece so that you can machine it from 5 sides or drill it without causing damage to the chuck.
You will obtain higher production efficiency while maintaining maximum holding force. You eliminate undesirable air gaps at the same time.
Installation or re-arrangement of the extensions is easily done with a screw.
Detailed description:

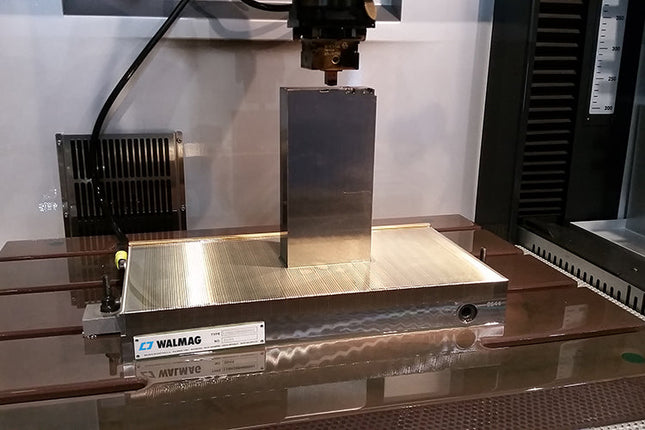

The Neomicro permanent magnetic chuck is ideal for precise grinding of small and thin as well as large pieces or for electrical discharge machining (EDM).
Its structure is waterproof. It can be cooled with coolant and immersed in dielectric liquid. The upper top plate composed of brass and steel lamellae ensures high stability, accuracy, and efficiency of clamping using the maximum concentration of magnetic force into the workpiece.
A long life span is ensured by the top plate with a regrinding limit up to 7 mm.
Important parameters:
Application: Grinding, EDM
Technology: Permanent
Holding force: 100 N/cm2
Min. workpiece size: 4 x 4 x 1 mm
Poles: Transverse
Regrinding limit: 7 mm
Pole pitch: T1.9 1.4+0.5 mm - steel/brass
Guarantee: 2 years
Use:
Precise surface grinding of small and thin, as well as large parts
Also suitable for electrical discharge machining (EDM)
Scope of supply:
Magnetic chuck
Set of clamps
Allen key
Rear and side stop blocks
Certificate
Instructions for use
Parameters
Model
W (mm)
L (mm)
H (mm)
Weight (kg)
NEOC100175
100
175
49
7
NEOC100250
100
250
49
10
NEOC130255
130
255
49
13
NEOC150250
150
250
51
15
NEOC150300
150
300
51
18
NEOC150350
150
350
51
22
NEOC150400
150
400
51
25
NEOC150450
150
450
51
28
NEOC200400
200
400
51
34
NEOC200450
200
450
51
37
NEOC200500
200
500
51
41
NEOC200600
200
600
51
49
NEOC250500
250
500
56
56
NEOC300600
300
600
56
81
Detailed description:
Neomill Compact is a permanent magnetic chuck with a unique waterproof design.The body (base) is made of durable and rigid material. The top plate is made of one piece of steel. The customer can prepare e.g. pockets and other auxiliary provisions for mass production anywhere on the top plate without slackening or disintegration of the top plate.
Important parameters:
Application: Milling
Technology: Permanent
Holding force: 160 N/cm2
Min. workpiece size: 25 x 25 x 6 mm
Poles: Transverse
Regrinding limit: 10 mm
Pole pitch: T15 11+4 mm - steel/epoxy resin
Guarantee: 2 years
Use:
Milling
Drilling
Planing
Heavy grinding
Scope of supply:
Magnetic chuck
Stop bars
Allen key
Certificate
Set of clamps
Operating and maintenance instructions
Parameters
Model
W (mm)
L (mm)
H (mm)
Weight (kg)
NEOMC150250
150
250
50
14
NEOMC150450
150
450
50
25
NEOMC200400
200
400
55
33
NEOMC200500
200
500
55
41
NEOMC200600
200
600
55
49
NEOMC250400
250
400
60
45
NEOMC300500
300
500
60
67
NEOMC300600
300
600
60
81
Detailed description:

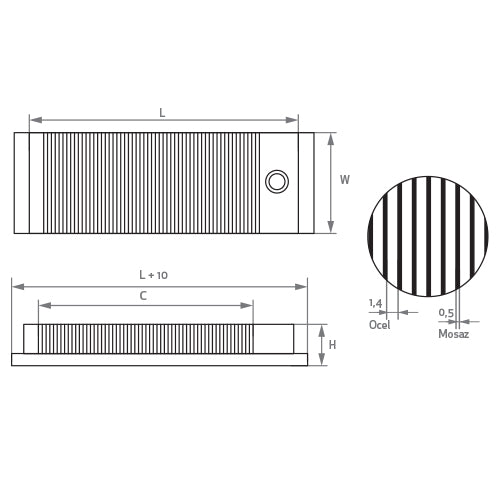

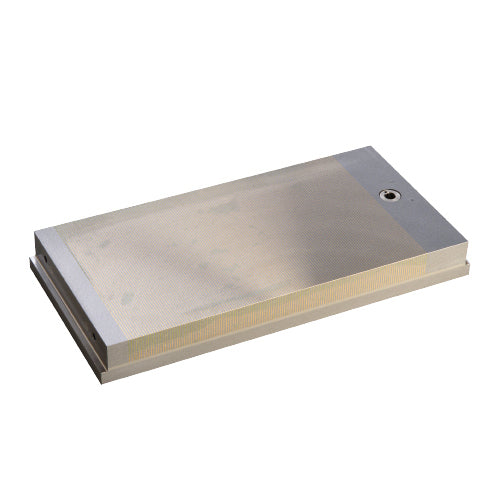

The Neospark magnetic chuck with low structural height is primarily developed for electrical discharge machining but it is also suitable for precise surface grinding of smaller workpieces.
The high holding force of the double magnetic system ensures clamping stability. Operators of the chuck will appreciate the very easy operation from the upper side of the magnet and the minimum maintenance.
Important parameters:
Application: EDM
Technology: Permanent
Holding force: 100 N/cm2
Min. workpiece size: 4 x 4 x 1 mm
Poles: Transverse
Regrinding limit: 7 mm
Pole pitch: T1,9 1,4 + 0,5 mm (steel/brass)
Guarantee: 2 years
Scope of supply:
Magnetic chuck
Set of clamps
Allen key
Certificate
Instructions for use
Use:
Electrical discharge machining EDM
Possibility of immersion in dielectric liquid Precise grinding of very small and thin parts
Parameters
Model
W (mm)
L (mm)
H (mm)
C (mm)
Weight (kg)
NEOK100175
100
175
32
120
5
NEOK130255
130
255
32
200
9
NEOK150150
150
150
35
95
7
NEOK150300
150
300
35
245
13
NEOK150350
150
350
35
295
15
NEOK150450
150
450
35
395
19
NEOK200400
200
400
35
342
23

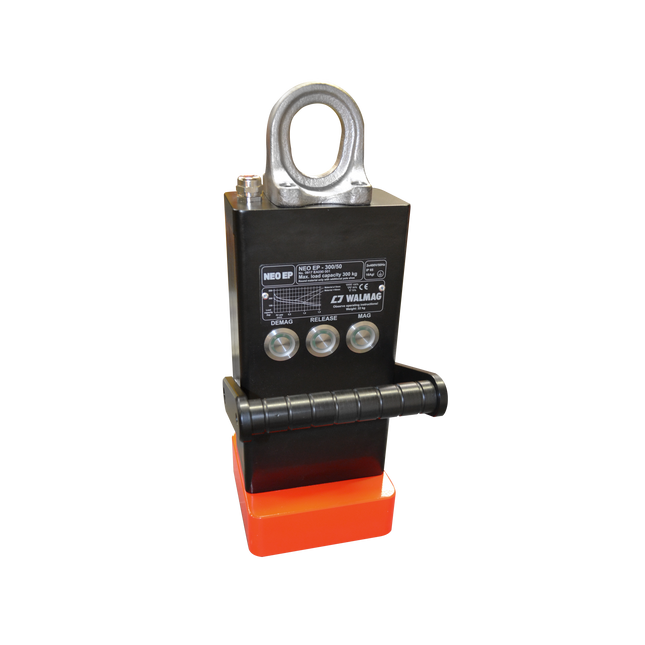

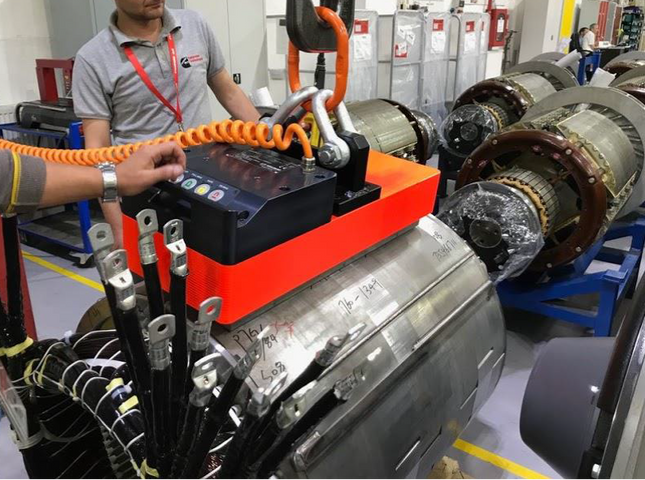

Neo EP electro-permanent lifting magnets offer an effective solution for the regular handling of sheet metal, cut-to-size parts, castings, forgings and other ferromagnetic materials. The magnet is activated and deactivated electrically via a control panel; however, holding the load does not require a continuous power supply.
This technology combines the advantages of permanent magnets and electromagnets – low energy consumption, high operational safety and convenient control without the need for mechanical switching.
On request, the magnet can be fitted with a remote control or magnetic force regulation for handling individual metal sheets.
Key parameters:
Applications: Lifting and handling of ferromagnetic materials
Technology: Electro-permanent magnet
Lifting capacity for flat material: up to 4,000 kg
Maximum material temperature: 80 °C
Duty cycle: 100%
Safety factor: 3:1
Warranty: 1 year
Applications:
Handling of sheet metal, cut-to-size pieces and steel plates
Handling of forgings, castings and machine parts
Operation of cutting, shearing and machining workstations
Frequent and repetitive handling in manufacturing facilities
Steelworks, warehouses and service centres
Loading and unloading of ferromagnetic materials
Package contents:
Neo EP magnet
Test certificate
Power cable
Operating instructions
Parameters
Model
W (mm)
L (mm)
H (mm)
Number of poles
Pole structure
Clamping surface (mm)
Weight (kg)
NEOSQ300
164
164
420
4
50 x 50
116 x 116
23
NEOSQ600
95
420
450
6
50 x 50
52 x 372
31
NEOSQ1000
228
228
295
4
80 x 80
172 x 172
39
NEOSQ4000
228
783
295
16
80 x 80
172 x 724
132
Detailed description:

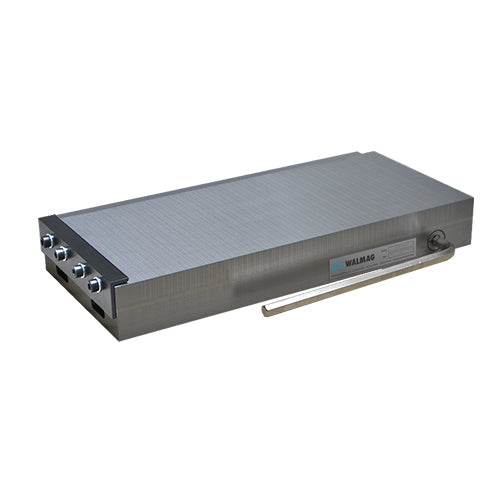

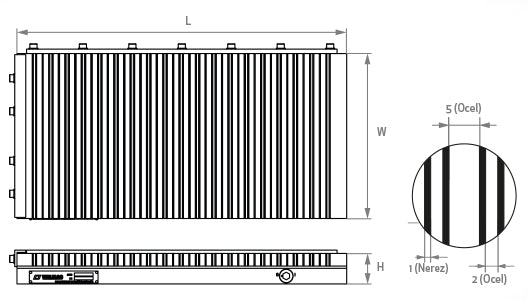

Neodymax ranks among the strongest permanent magnetic chucks in our range. Heavy holding force up to 120 N/cm2 helps clamp the parts during machining efficiently. This is due to the double neodymium magnetic system capable of exerting a high holding force and retaining a low chuck weight.
The top plate is made of very durable material and provided with transverse combined poles with a pitch of 5/1/5/1/2/1 mm (steel/stainless steel).
Consequently, Neodymax is suitable for workpiece clamping during precise surface grinding when it is no problem to clamp small and thin parts as well as much bigger components. The chuck can also be used for light milling operations.
Thanks to its waterproof design, the chuck can be immersed in dielectric liquid during EDM machining.
Important parameters:
Application: Milling, grinding, EDM
Technology: Permanent
Holding force: 120 N/cm2
Min. workpiece size: 10 x 10 x 5 mm
Poles: Transverse
Regrinding limit: 6 mm
Pole pitch: 15 mm, further refined 5/1/5/1/2/1 steel/stainless steel
Guarantee: 2 years
Scope of supply:
Magnetic chuck
Rear and side stop blocks
Allen key
Instructions for use
Use:
Precise grinding of small and thin pieces up to large components
Light surface milling
Parameters
Model
W (mm)
L (mm)
H (mm)
Weight (kg)
NEOD150300
150
300
54
20
NEOD150450
150
450
54
30
NEOD200450
200
450
54
40
NEOD250380
250
380
56
40
NEOD300600
300
600
56
78

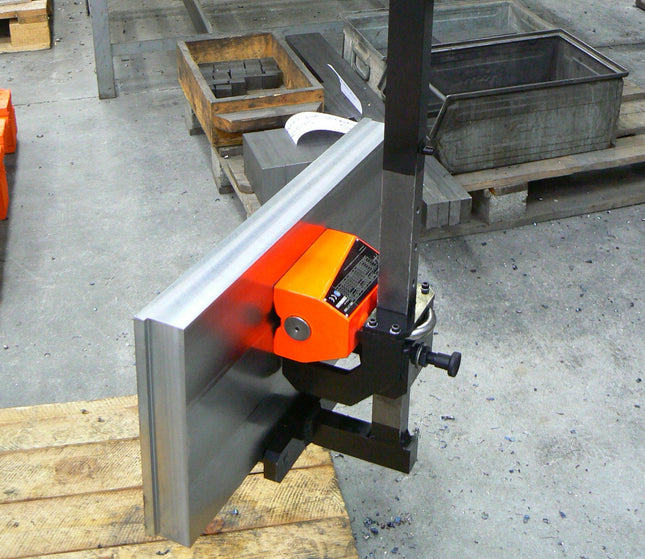

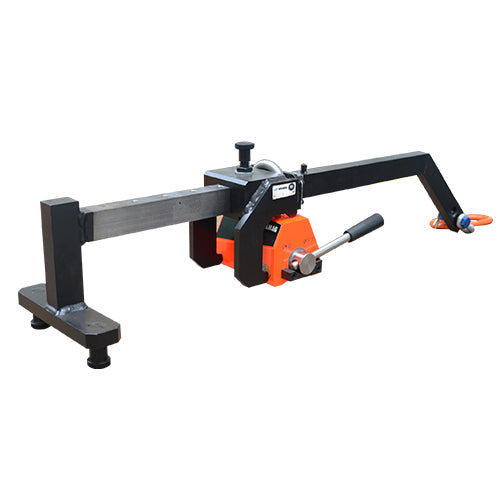

The Neo HV lifting arm extends the range of applications for NEO permanent load magnets by enabling the safe positioning of loads between horizontal and vertical positions. It facilitates the handling of sheet metal, panels and other flat workpieces when loading them into machine tools or moving them between workstations.
When used in conjunction with a Neo load magnet, it helps to reduce the use of chains, clamping devices and manual handling. This improves workplace safety and facilitates the operation and handling of larger workpieces.
The load magnet is not included in the scope of supply and is supplied separately.
Key parameters:
Applications: Positioning and rotating loads by 90°
Technology: Accessories for Neo permanent magnets
Load capacity: up to 1,000 kg
Load width: 300–1,000 mm depending on the model
Safety factor: 3:1
Warranty: 1 year
Applications:
Loading workpieces into lathes
Loading workpieces into horizontal machining centres
Rotating loads between horizontal and vertical positions
Handling sheet metal, plates and flat workpieces
Moving workpieces between production workstations
Contents of the package:
Lifting arm
Test certificate
Operating instructions
Parameters
Model
W (mm)
L (mm)
H (mm)
Lifting capacity (kg)
Workpiece width (mm)
Weight without magnet (kg)
LARM250
210
958
244
250
300-800
16
LARM500
210
1158
244
500
300-1000
20
LARM1000
210
1211
297
1000
300-1000
33
Detailed description:

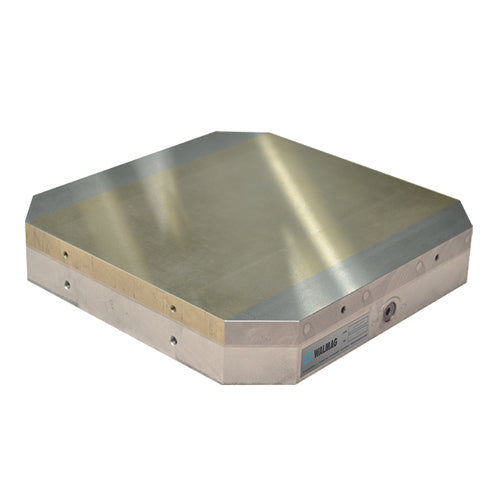

The Neomicro permanent magnetic pallet chuck is ideal for precise grinding and electrical discharge machining of small and thin, as well as large parts.
Its structure is low and waterproof. It can be cooled with coolant and immersed in dielectric liquid. The upper top plate consisting of brass and steel lamellae ensures high stability and accuracy.
The switching mechanism with gradual start makes it possible to control not only the holding force but also the magnetic field height. The influence of the magnetic field on the tool electrode during electrical discharge machining is thereby minimised.
Important parameters:
Application: Grinding, EDM
Technology: Permanent
Holding force: 100 N/cm2
Min. workpiece size: 4 x 4 x 1 mm
Poles: Transverse
Regrinding limit: 7 mm
Pole pitch: T1.9 1.4+0.5 mm - steel/brass
Guarantee: 2 years
Use:
Precise surface grinding of small and thin, as well as large parts
Also suitable for electrical discharge machining (EDM)
Scope of supply:
Magnetic chuck
Allen key
Side stop blocks
Instructions for use
Parameters
Model
W (mm)
L (mm)
H (mm)
Weight (kg)
NEOC240240P
240
240
63,5
21,5
NEOC2802800P
280
280
63,5
29
NEOC320320P
320
320
63,5
38
Detail description:

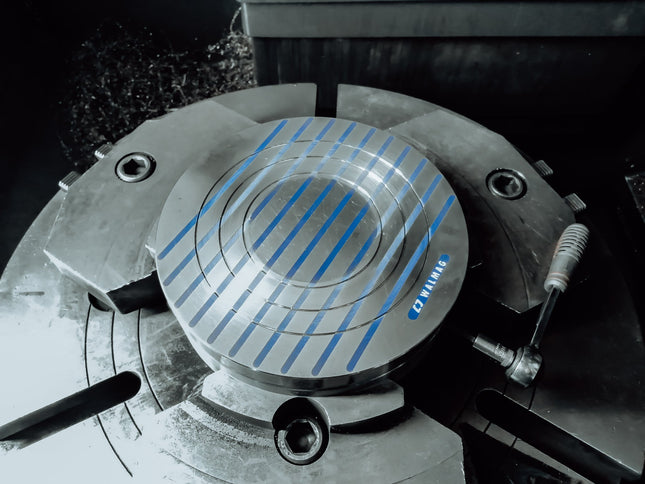

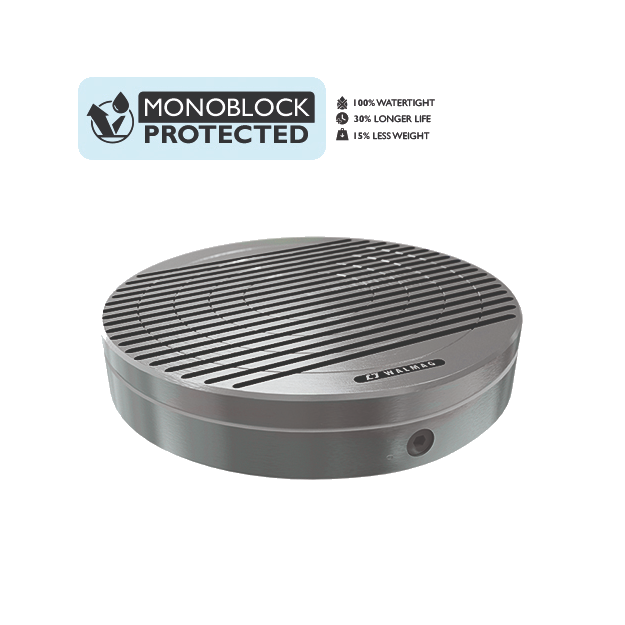

Maxgrip permanent magnetic chuck is a suitable tool for clamping of different workpiece shapes during grinding, as well as turning operations. The possibility to adjust the holding force greatly facilitates centering of workpieces. Thanks to the low and very stable magnetic field can be clamped even relatively small and thin workpieces. The top plate is made of one solid unit, so there is absolutely no risk of coolant leakage into the chuck´s body. The top plate has also high regrinding limit, which ensures a very long service life.
Important parameters:
Application: Turning, circular grinding
Technology: Permanent
Available dimensions: From 200 mm
Holding force: Up to 160 N /cm2
Poles: Parallel (transverse)
Min. workpiece diameter: 40 x 8 mm
Regrinding limit: 10 mm
Pole pitch: T15 11 + 4 mm (steel/epoxy)
Guarantee: 2 years
Use:
Clamping of workpieces during turning and circular grinding
Scope of supply:
Magnetick chuck
Wrench key
Operating instructions
Parameters:
Model
D (mm)
H (mm)
G (mm)
D1 (mm)
Weight (kg)
MAXGRIP200
200
57
5
60
15
MAXGRIP250
250
57
5
80
22
MAXGRIP300
300
57
6
150
32
MAXGRIP350
350
57
6
170
43
MAXGRIP400
400
57
8
200
56
Detailed description:

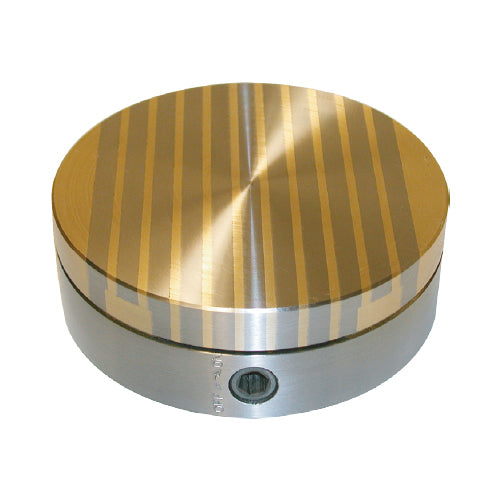

The Neogrip permanent magnetic circular chuck is specially designed primarily for clamping very thin and small components such as small flat workpieces, profiled sections, etc. However, it will also manage clamping of larger workpieces and that is why it is a versatile aid in every industrial production.
The double magnetic system with neodymium magnets ensures a significant holding force during clamping to ensure stability of the workpiece during machining. This will give you precise results.
Important parameters:
Application: Circular grinding
Technology: Permanent
Holding force: 80 N/cm2
Min. workpiece diameter: 35 x 5 mm
Poles: Transverse
Regrinding limit: 7 mm
Pole pitch: T11 8+3 mm (steel/brass)
Guarantee: 2 years
Scope of supply:
Magnetic chuck
Allen key
Instructions for use
Use:
Finishing during circular grinding
Circular grinding in dry conditions and with cooling emulsion
A tool for various mechanical workplaces
Parameters
Model
D (mm)
H (mm)
E (mm)
Weight (kg)
NEOG100
100
51
86
3
NEOG130
130
51
120
5
NEOG150
150
51
137
7
NEOG200
200
51
182
12
Detailed description:

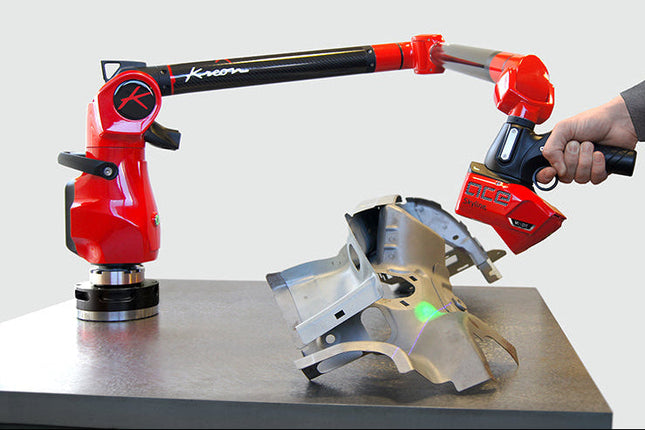

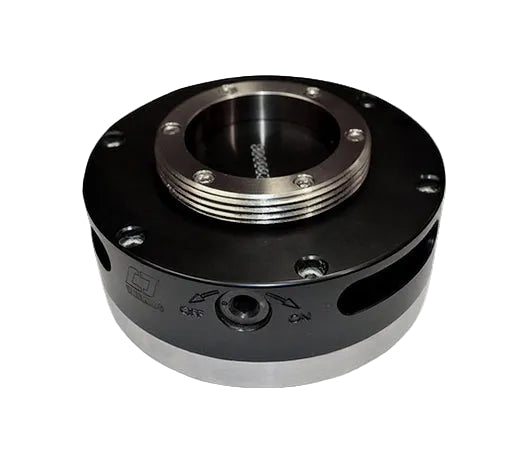

Permanent magnetic base adapted for attaching 3D measuring devices (measuring arms, etc.). It is compatible with measuring devices from renowned manufacturers (FARO, Hexagon, etc.).
Important parameters:
Technology: Accessories
Application: Permanent
Chuck diameter: 150 mm
Holding force: up to 140 N/cm2
Poles: Radial
Guarantee: 2 years
Use:
Accessories for portable measuring arms designed for highly precise measurement using touch probes
Magnetic holder for laser scanner
Package content:
Magnetic chuck
Switching key
Certificate
Instructions for use
Parameters:
Model
D (mm)
H (mm)
Weight (kg)
Mouting ring
MZPM150
150
73
4,95
89 mm x 8 UNC - 2A

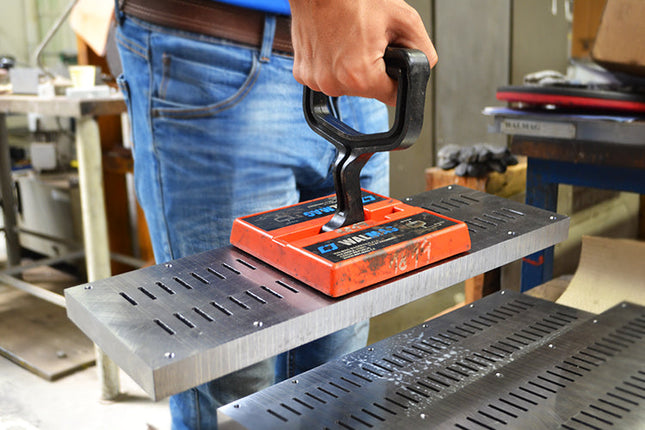

The MC series of magnetic grippers facilitate the manual handling of steel sheets, cut-to-size parts and other ferromagnetic loads. They help to reduce the physical strain on operators and improve safety when lifting and carrying materials.
Their compact design and low weight mean the grip can always be kept to hand. The robust construction ensures a long service life even with daily use in industrial environments.
Manual magnetic grips are intended exclusively for manual handling and must not be used as a suspension device for cranes or other lifting equipment.
Key specifications:
Application: Manual handling of ferromagnetic loads
Technology: Permanent magnet
Load capacity: up to 90 kg
Maximum material temperature: 80 °C
Warranty: 2 years
Uses:
Manual handling of sheet metal and plates
Carrying cut-to-size pieces and steel components
Removing individual sheets from stacks
Handling smaller steel blocks
Manufacturing facilities, warehouses and metalworking workshops
Contents:
MC manual gripper
Operating instructions
Parameters
Model
W (mm)
L (mm)
H (mm)
Max. lifting cap./sliding force (kg)
Weight (kg)
MC-2
150
160
27
60/35
1,4
MC-2S
160
230
24
90/80
2,9

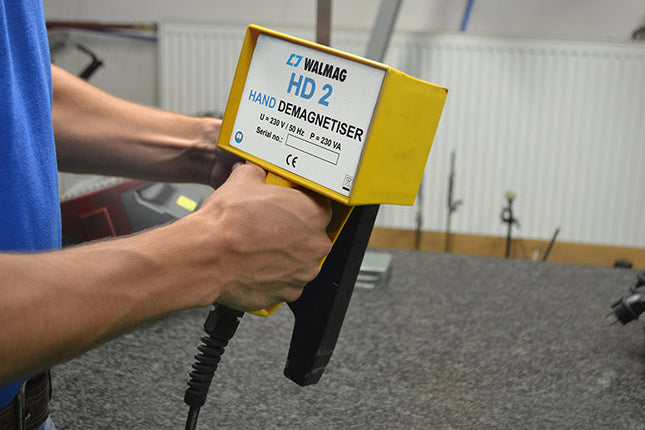

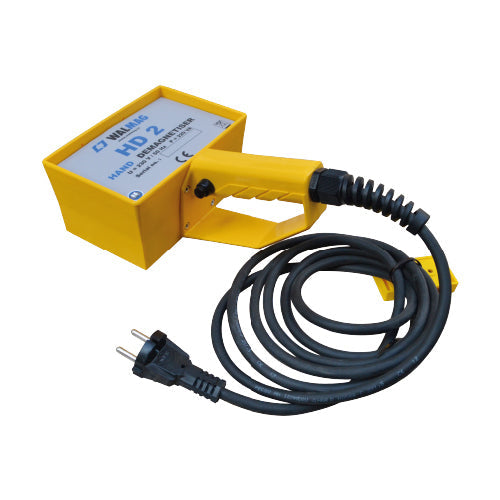

The HD handheld demagnetiser is a portable device designed for the targeted demagnetisation of ferromagnetic parts directly at their point of use. It enables the removal of residual magnetism even from large or complex components that are difficult to handle.
It is used primarily during maintenance, assembly or repairs where it is necessary to quickly and effectively restore the required material properties without interrupting operations.
Key specifications:
Application: Demagnetisation of ferromagnetic components
Technology: Electrical (alternating magnetic field)
Duty cycle: 50%
Max. continuous operating time: 5 min
Depth of demagnetisation field: up to 30 mm
Power supply: 230 V / 50–60 Hz (optionally 110 V)
Warranty: 2 years
Applications:
Mobile demagnetisation of large, heavy or complex-shaped components
Localised removal of residual magnetism without the need to handle the component
Suitable for maintenance, servicing and assembly work
For use with moulds, tools, bearings and machine parts
Package contents:
Demagnetiser
Operating instructions
Parameters:
Model
Active area (mm)
Voltage (VA)
Depth of the magnetic field (mm)
Weight (kg)
HD2
105 x 95
350
max. 40
2,2
“We use Revolift in our company for lifting heavy loads and it’s really great. It holds perfectly, is easy to operate, and makes work much faster and safer. We would definitely recommend it to anyone who needs a reliable magnet.
Alain BouryProduction Manager, Škoda Auto
Service directly in the Czech Republic
As one of the few companies on the market, we provide complete service, refurbishment and repair of all our products. We also accept inspections and testing of products from other brands. Our goal is for our magnetic systems to last you as long as possible. Therefore, we provide professional warranty and post-warranty service, repairs and refurbishments of all technologies, as well as operator training.
