Product description

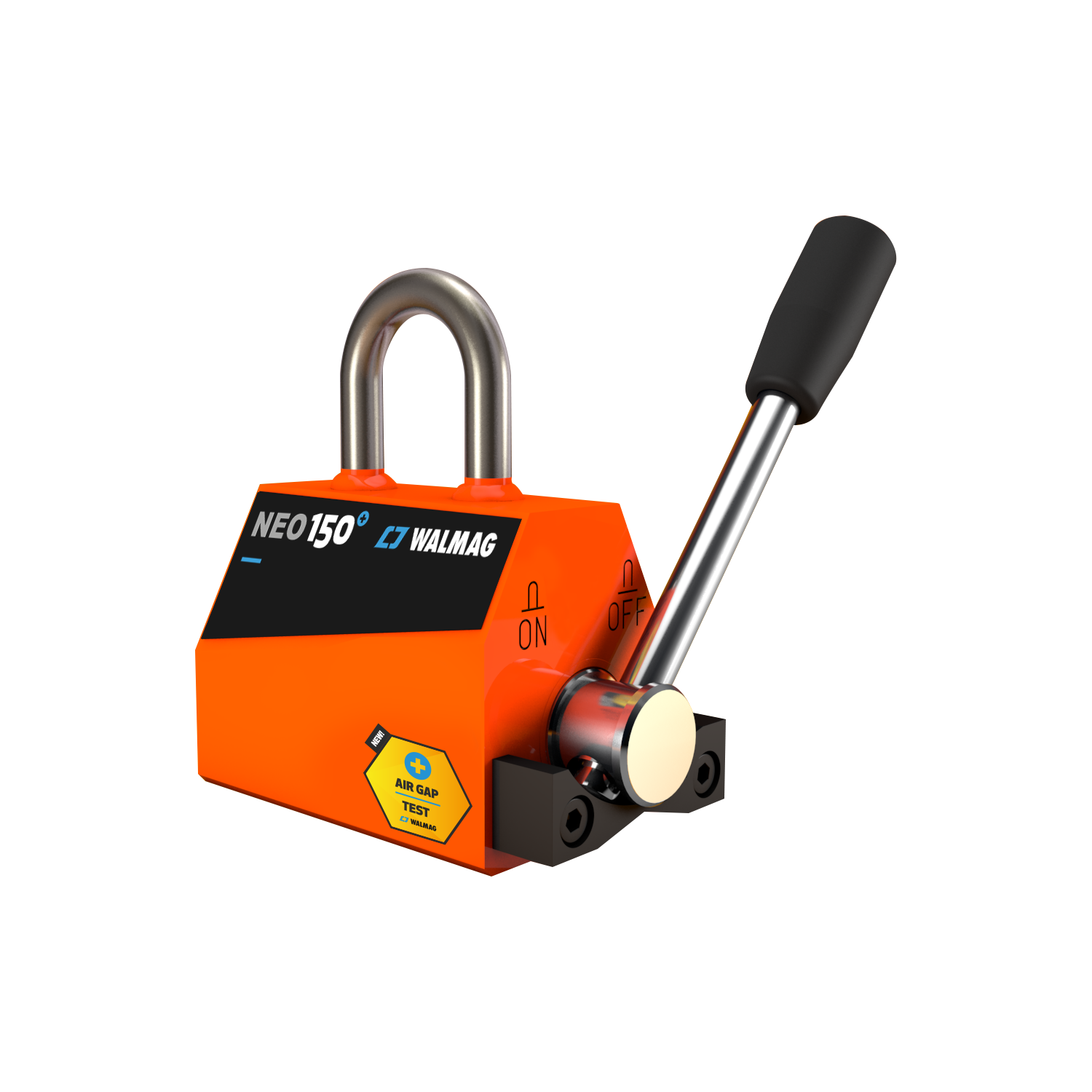

The Neo permanent load-lifting magnet is a tried-and-tested solution for handling steel materials across a wide range of industrial applications. Thanks to the use of powerful neodymium magnets, it achieves a high load-bearing capacity whilst maintaining compact dimensions and a low weight. The magnet is suitable for handling both flat and circular workpieces and enables quick and easy lifting without the need for an electrical power supply. Each magnet is tested using the Air Gap Test, which simulates real-world operating conditions and verifies the safety of its use. Its robust construction, high-quality components and safety factor of 3+ in accordance with EN 13155 ensure reliable operation even in demanding industrial environments.
Unique features:
- Easy Switch: The ergonomic control lever allows for quick and convenient activation and deactivation of the magnet, even during frequent use.
- Air Gap Test: Each magnet is tested with an air gap that simulates real-world operating conditions and verifies safe operation.
- Stainless steel lifting eye:The durable stainless steel lifting eye ensures a long service life even in demanding industrial environments.
- Safety factor 3+: The magnet complies with the requirements of standard EN 13155 and provides a high level of safety during handling.
- Capacity table directly on the magnet: Load capacities and operating parameters are always easily accessible directly on the unit.
- Compact design: High load capacity combined with low weight facilitates handling and expands the range of applications.
- 5-year warranty: We provide a 5-year warranty on the magnetic system.
Key parameters:
- Applications: Lifting and handling of ferromagnetic materials
- Technology: Permanent magnet
- Lifting capacity for flat material: up to 2,000 kg
- Lifting capacity for circular material: up to 1,000 kg
- Maximum material temperature: 80 °C
- Safety factor: 3+ in accordance with EN 13155
- Warranty on the magnetic system: 5 years
Applications:
- Handling of steel sheets, blocks and cut-to-size pieces
- Lifting of sections, beams and structural components

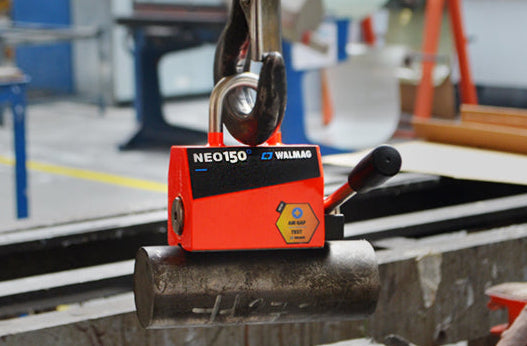

- Handling of round timber and cylindrical workpieces
- Operation of machine tools, saws and cutting stations
- Loading and unloading of materials in warehouses and production facilities
Contents of the package
- Neo permanent magnet
- Operating instructions
- Test certificate
Parameters

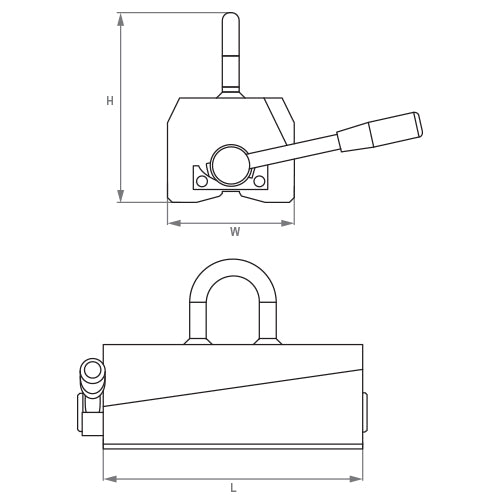

| Model | W (mm) | L (mm) | H (mm) | Eye diameter (mm) | Weight (kg) | Workload limit flat materials (kg) | Workload limit round materials (kg) | Min/max diameter (mm) |
|---|---|---|---|---|---|---|---|---|

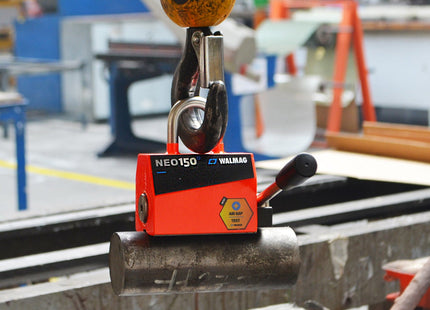

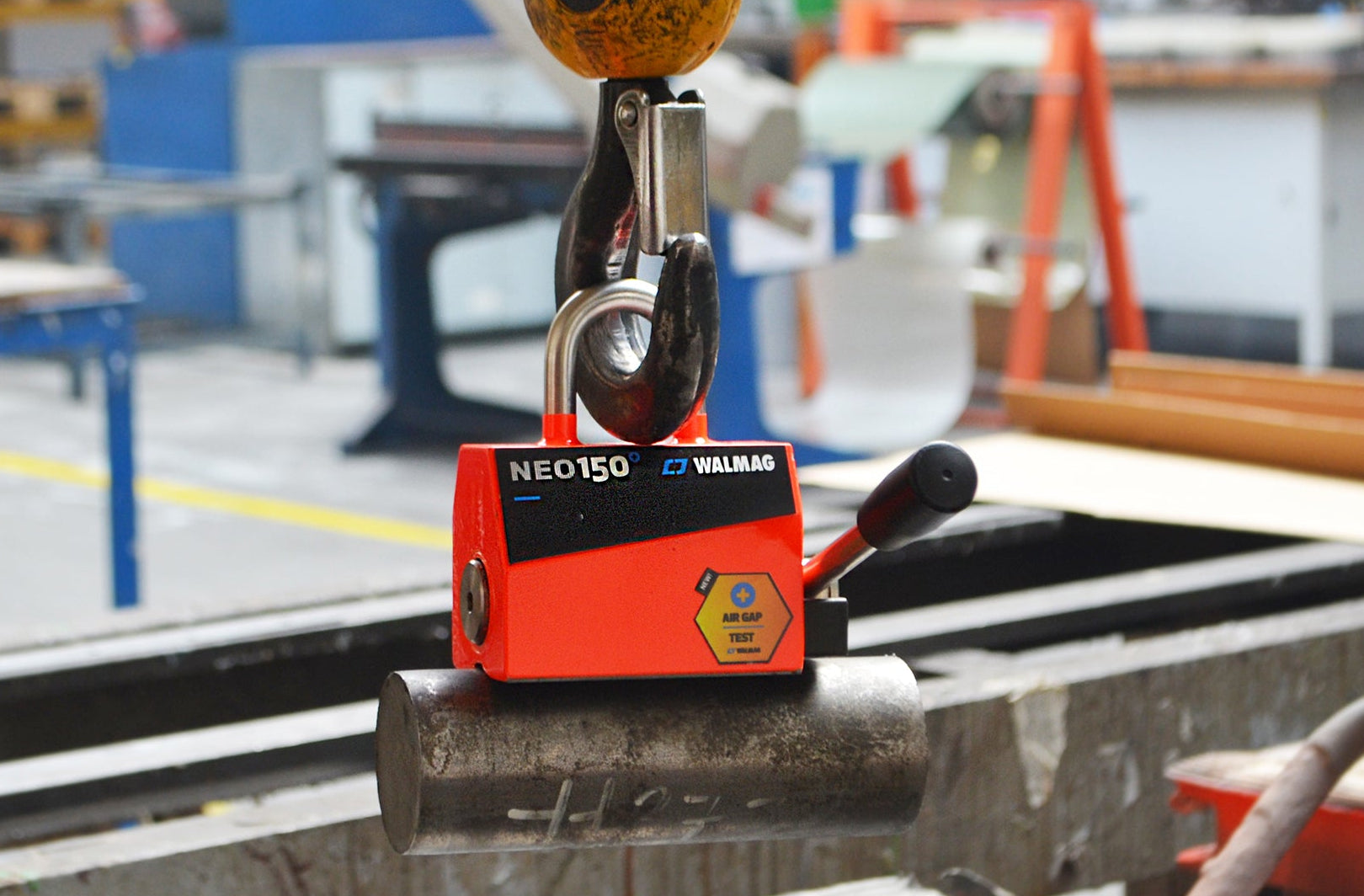

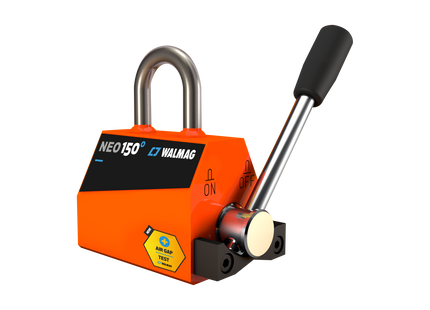

| NEOL150 | 60 | 93 | 120 | 10 | 3 | 150 | 65 | 50/100 |

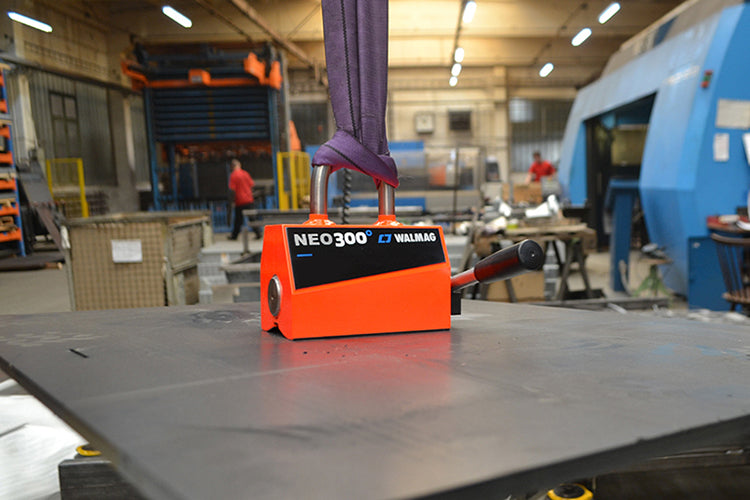

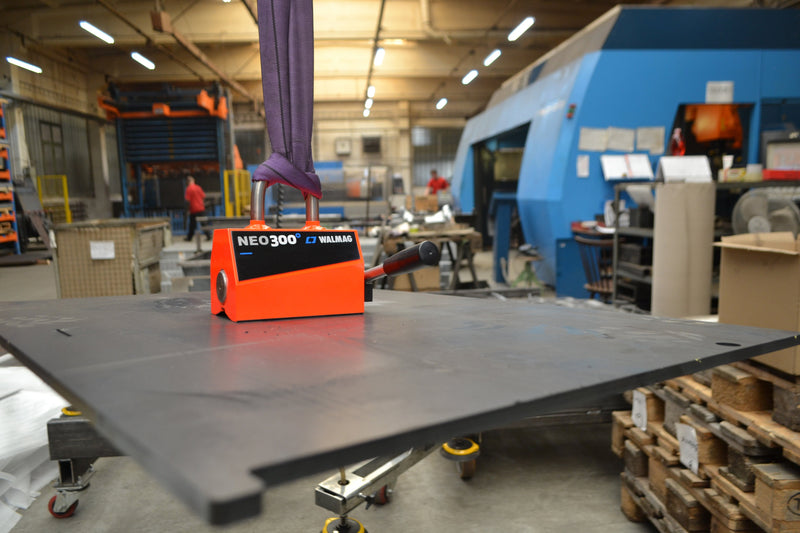

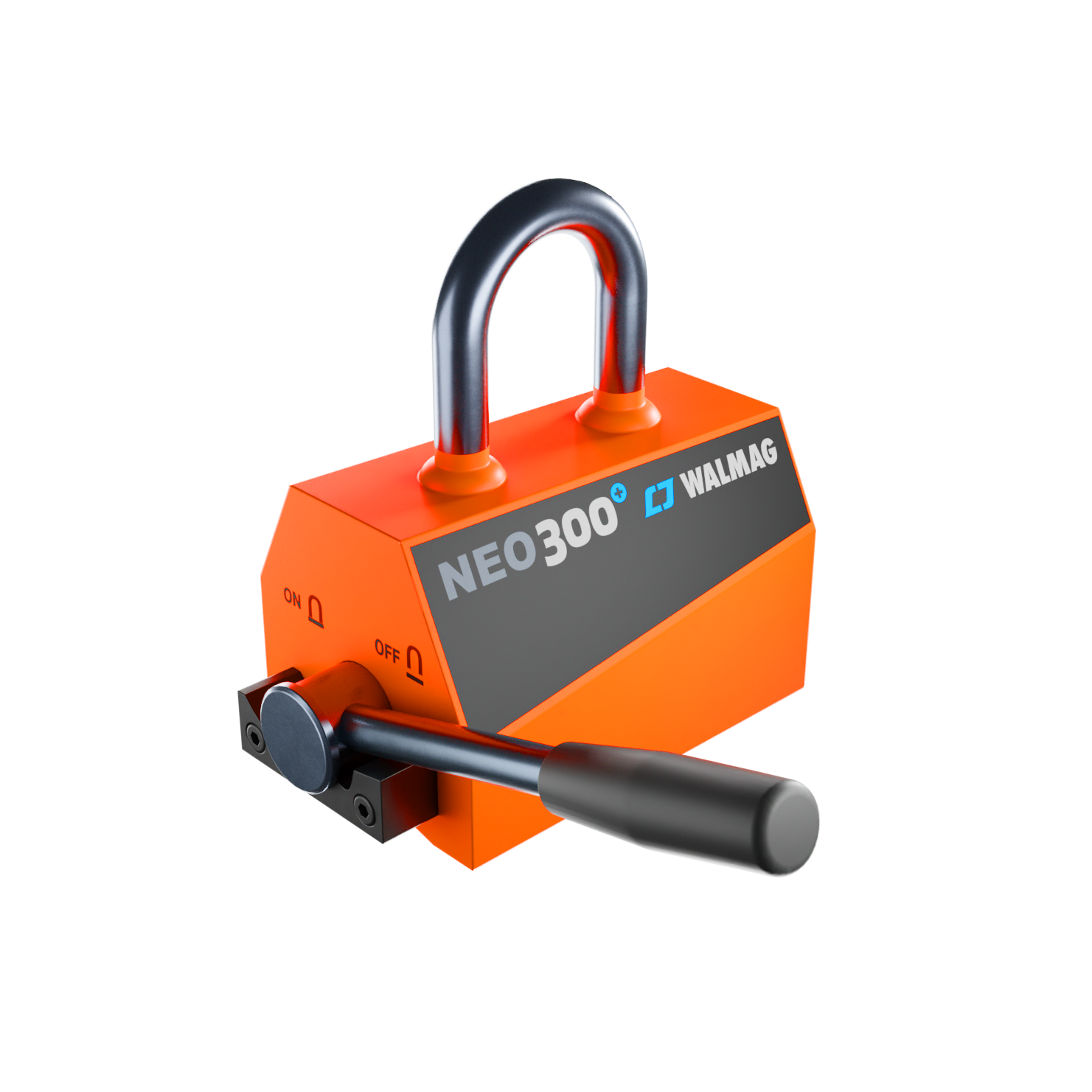

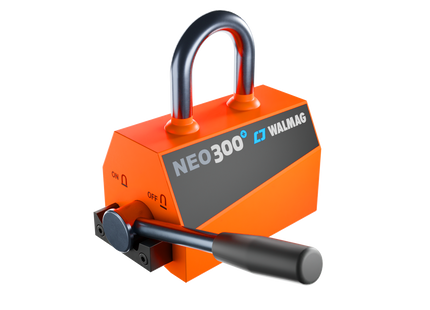

| NEOL300 | 100 | 152 | 180 | 16 | 10 | 300 | 150 | 60/200 |

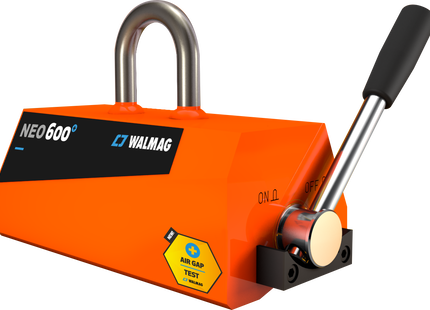

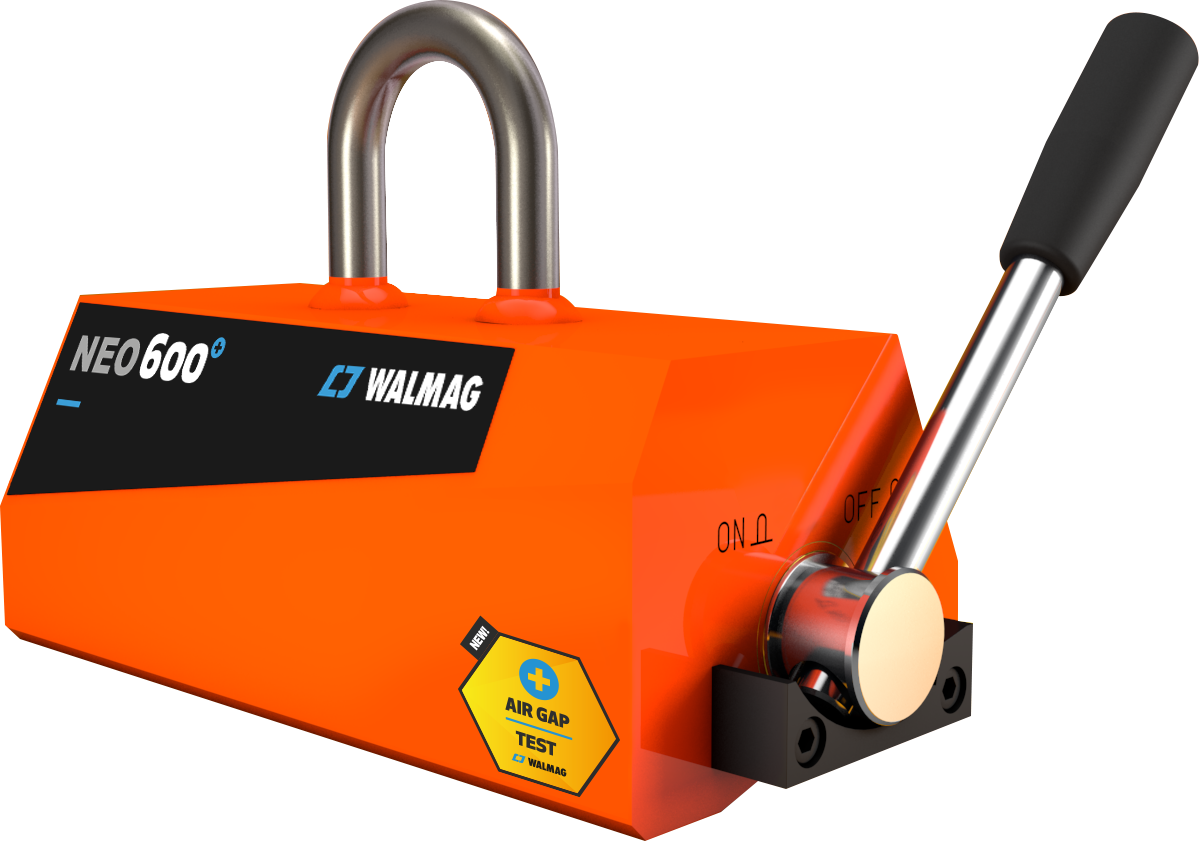

| NEOL600 | 120 | 246 | 180 | 20 | 21 | 600 | 300 | 65/270 |

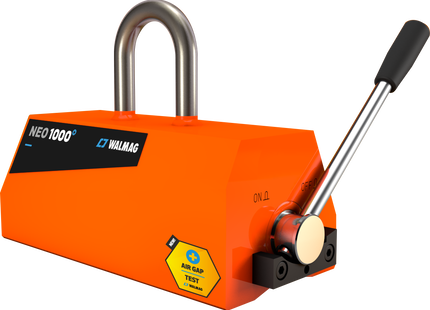

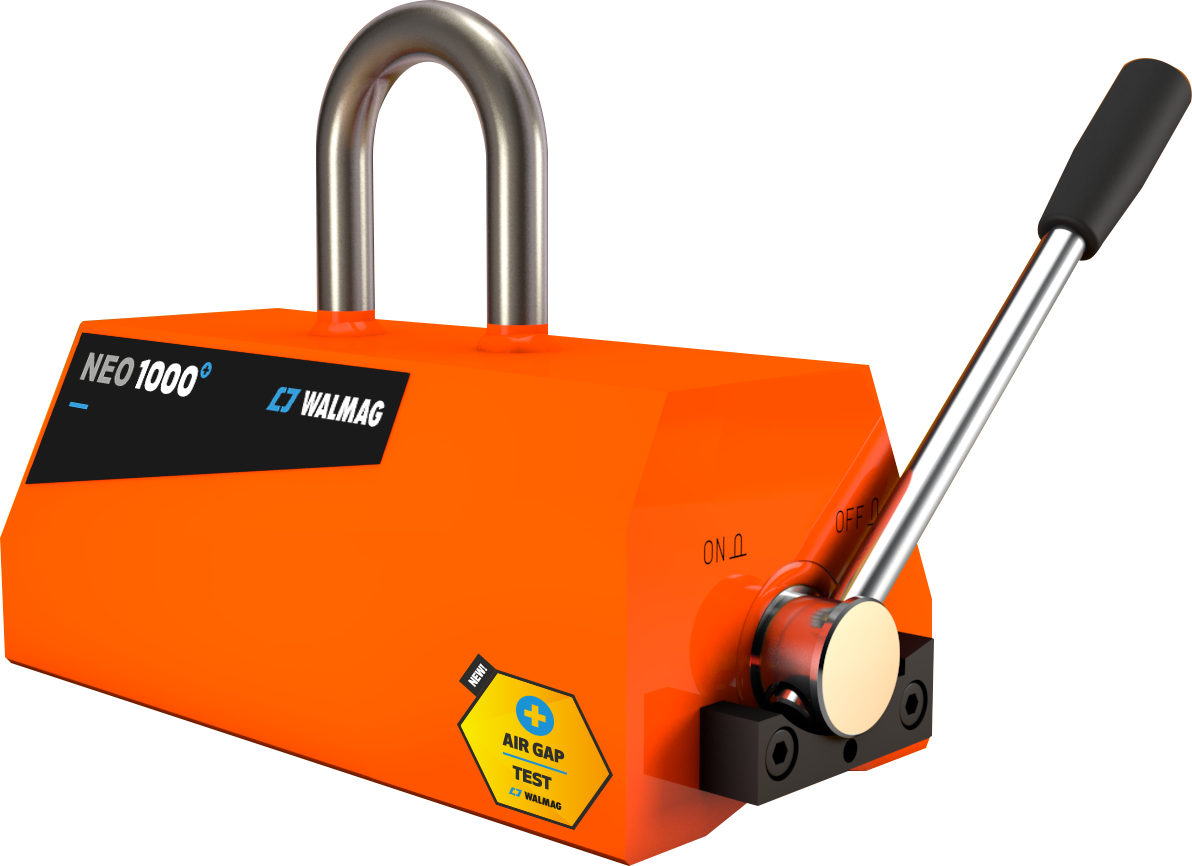

| NEOL1000 | 146 | 306 | 236 | 20 | 40 | 1000 | 500 | 100/300 |

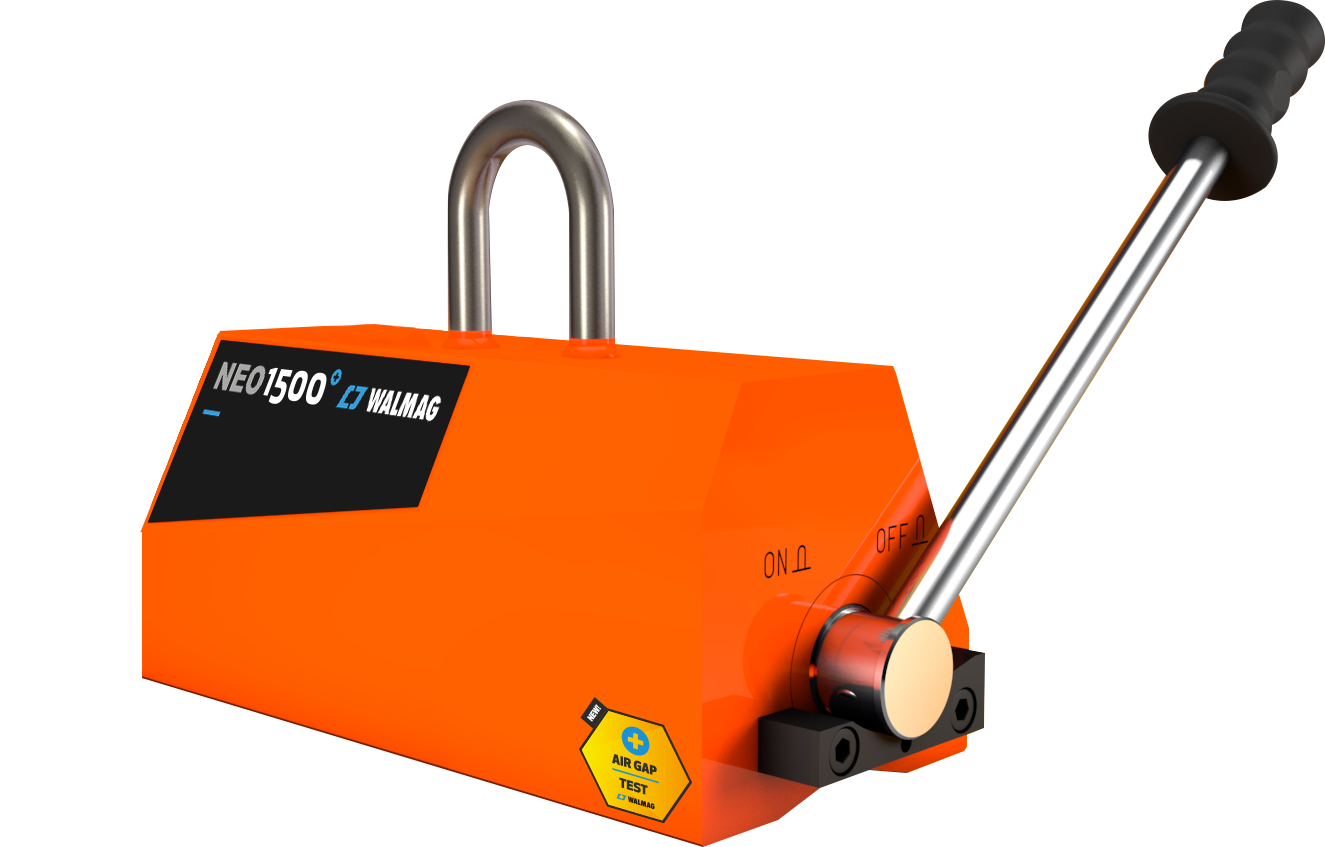

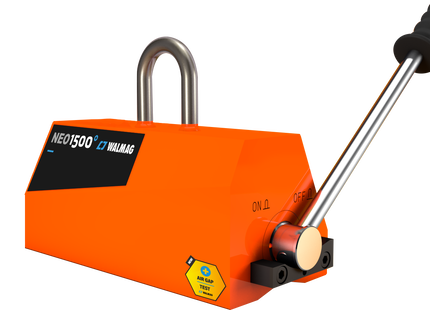

| NEOL1500 | 165 | 374 | 273 | 20 | 69 | 1500 | 750 | 150/350 |

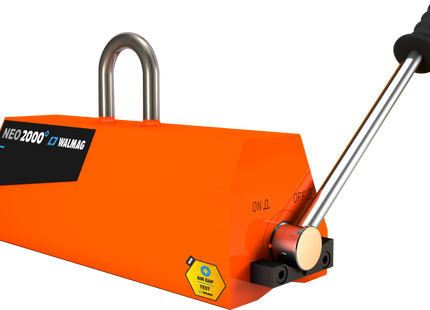

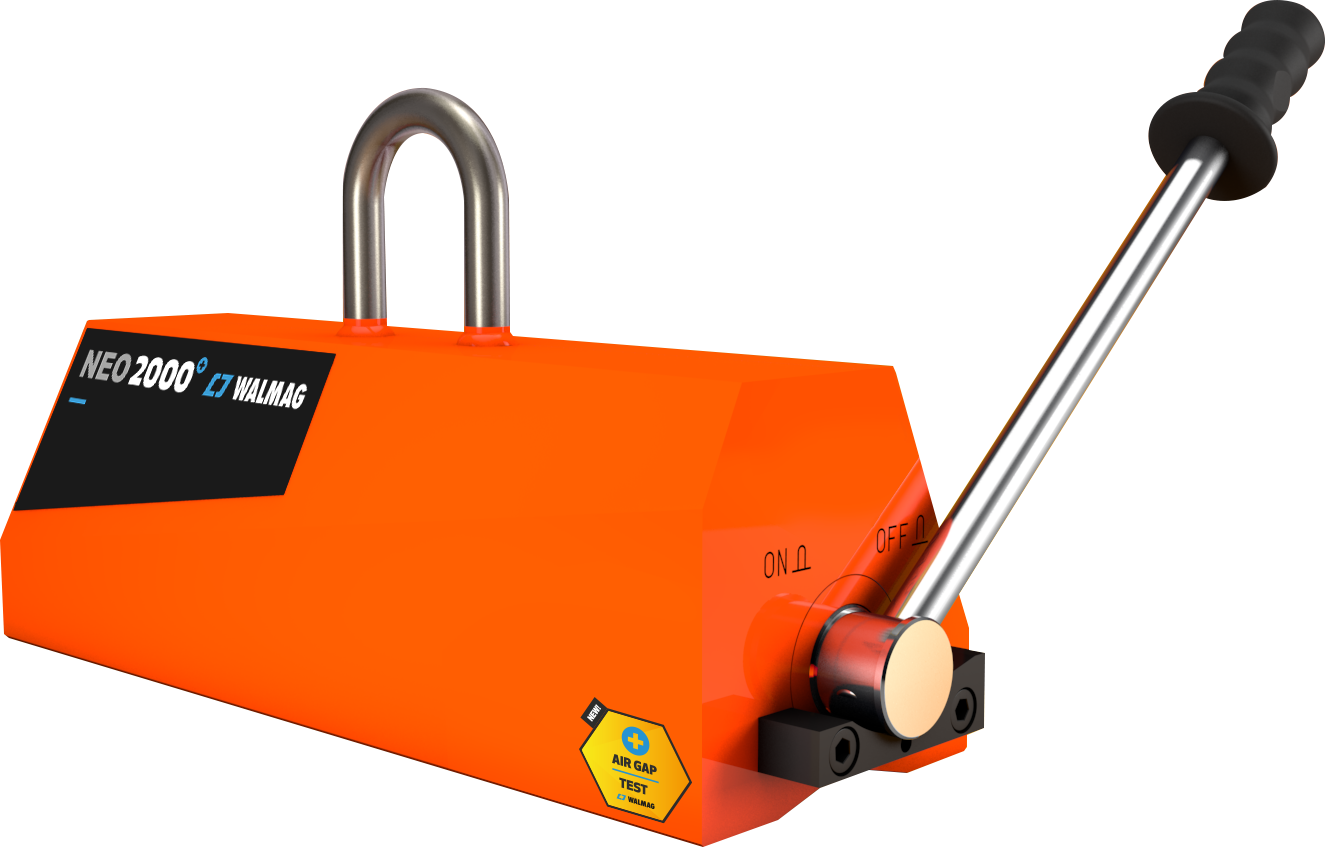

| NEOL2000 | 165 | 478 | 273 | 20 | 90 | 2000 | 1000 | 150/350 |
Documents for Download
Easy Switch Simple control
Air Gap test
Safety factor 3+
Our bestseller and a 5-year warranty on the magnetic system
Do you need help?
Walmag products are in companies such as
Sonicam and Neolift
Why Walmag?
We've been manufacturingmagnets in Czechia since 1991
We manufactured90,000+ magnets
We service magnetsdirectly in Kroměříž
Our magnets are in morethan 61 countries worldwide
Frequently Asked Questions (FAQ)
Are your products made in the Czech Republic?
Yes, the entire process – from in-house development through design, production, to final assembly and testing – takes place directly in our plant in Kroměříž. This gives us full control over quality and allows us to flexibly tailor products to specific customer requirements.
What is the difference between permanent, electromagnetic, and electro-permanent systems?
Permanent Magnets: Operate without electricity, activated mechanically by a lever. They are safe, mobile, and maintenance-free.
Electromagnets: Generate a magnetic field using coils powered by mains electricity. They possess immense strength, can clamp uneven surfaces, and allow force regulation, but require a constant power supply and backup sources.
Electro-permanent Magnets: Combine the advantages of both systems. They only require electric current for a fraction of a second for activation (magnetization) and deactivation. During operation itself, they do not need current, making them extremely safe even in the event of a power outage and preventing overheating.
Can your lifting magnets also be used for handling materials at high temperatures?
Conventional permanent magnets lose their strength at temperatures above 80 °C. However, for operations with higher temperatures, we offer special series (e.g. HOT lifting magnets) that can safely handle materials with temperatures up to 180 °C.
Why is it necessary to use a demagnetizer after machining?
Ferromagnetic materials retain residual magnetism after being exposed to a magnetic field (e.g., when clamped onto a magnetic chuck). This causes metal chips and dust to stick to the workpiece, which can damage tools or complicate further processing (e.g., painting, welding). Demagnetizers reliably remove this residual magnetism.
Do you provide service and revisions for your products?
Yes, for all our technologies, including older BUX, Walker, and Pilana brand products, we provide complete warranty and post-warranty service, repairs, overhauls, and original spare parts. We also perform mandatory periodic certifications, inspections, and load capacity testing of lifting magnets.
Do you also offer staff training?
Yes. As part of the delivery of our magnetic applications and large systems, we provide professional operator training to ensure that working with magnets is as efficient and safe as possible.
How can I contact you if I am interested in a tailored solution?
You can contact us by e-mail at info@walmag.cz, by phone at +420 573 341 641, or directly contact our regional sales managers for the Czech Republic and abroad, whose contact details can be found in the Contact section of our website.
How is heavy goods (e.g. clamping plates) delivered?
Due to the higher weight of our products, we cooperate with specialized pallet and parcel carriers who ensure safe handling.
How is the safety of lifting magnets purchased from the e-shop guaranteed?
All lifting magnets comply with the strict ČSN EN 13155 standard and operate with a safety factor of 3+. This means that in a pull-off test (the so-called Air Gap test, which simulates a real air gap/dirt in operation), the magnet can lift more than three times its declared maximum load capacity.
Where can I find user manuals and technical documentation?
Technical sheets, catalogues, and operating instructions for individual products are available either on the product's page or upon request.
