Handling and Lifting

Revolift represents a new generation of permanent lifting magnets for the day-to-day handling of steel materials. It is designed for lifting both flat and circular workpieces and combines a high level of safety with ease of use. Compared to standard permanent magnets, it offers a range of practical improvements that enhance user comfort and facilitate the monitoring of safe lifting. These include, for example, the Load Test function, an ergonomically positioned control handle and an integrated NFC chip providing access to documentation and test reports. Its robust construction, durable markings and long service life make the Revolift ideal for everyday use in industrial settings. Unique features: Load Test function: Allows you to verify the suitability of the lift before handling, particularly for materials with unknown properties, air gaps or irregular shapes. Ergonomic handle: The position and shape of the handle ensure more comfortable control and better handling during everyday use. Clear safety markings: New labels make it easier to identify the magnet’s load capacities and operating conditions. Integrated NFC chip: Quick access to the user manual, certificates and test reports via a smartphone. Online manual: The QR code on the label takes you to the operating instructions, which simplifies and ensures safety when using the lifting magnet. Scratch and dust resistance: Both the construction and the labelling are designed for long-term use in industrial environments. Key specifications: Applications: Lifting and handling of ferromagnetic materials Technology: Permanent magnet Lifting capacity for flat material: up to 2,000 kg Lifting capacity for round material: up to 1,000 kg Maximum material temperature: 80 °C Safety factor: 3+ (in accordance with EN 13155) Warranty on the magnetic system: 5 years Applications: Handling of steel sheets, blocks and cut-to-size parts Lifting of sections, beams and structural elements Handling of round timber and cylindrical workpieces Operation of machine tools, saws and cutting stations Loading, unloading and moving of materials in production and warehouses Contents of the package Magnet with a label featuring an integrated NFC chip Safety poster Certificate Model W (mm) L (mm) H (mm) Eye diameter (mm) Weight (kg) Workload limit flat materials (kg) Workload limit round materials (kg) Min/max diameter (mm) REVO150 60 97 123 10 3,1 150 65 50/95 REVO300 100 152 180 16 10,4 300 150 62/197 REVO600 120 246 184 20 20,6 600 300 95/230 REVO1000 146 305,5 241 20 40 1000 500 90/299 REVO2000 165 492 285 20 98,7 2000 1000 160/300

Read more less

The Neo permanent load-lifting magnet is a tried-and-tested solution for handling steel materials across a wide range of industrial applications. Thanks to the use of powerful neodymium magnets, it achieves a high load-bearing capacity whilst maintaining compact dimensions and a low weight. The magnet is suitable for handling both flat and circular workpieces and enables quick and easy lifting without the need for an electrical power supply. Each magnet is tested using the Air Gap Test, which simulates real-world operating conditions and verifies the safety of its use. Its robust construction, high-quality components and safety factor of 3+ in accordance with EN 13155 ensure reliable operation even in demanding industrial environments. Unique features: Easy Switch: The ergonomic control lever allows for quick and convenient activation and deactivation of the magnet, even during frequent use. Air Gap Test: Each magnet is tested with an air gap that simulates real-world operating conditions and verifies safe operation. Stainless steel lifting eye:The durable stainless steel lifting eye ensures a long service life even in demanding industrial environments. Safety factor 3+: The magnet complies with the requirements of standard EN 13155 and provides a high level of safety during handling. Capacity table directly on the magnet: Load capacities and operating parameters are always easily accessible directly on the unit. Compact design: High load capacity combined with low weight facilitates handling and expands the range of applications. 5-year warranty: We provide a 5-year warranty on the magnetic system. Key parameters: Applications: Lifting and handling of ferromagnetic materials Technology: Permanent magnet Lifting capacity for flat material: up to 2,000 kg Lifting capacity for circular material: up to 1,000 kg Maximum material temperature: 80 °C Safety factor: 3+ in accordance with EN 13155 Warranty on the magnetic system: 5 years Applications: Handling of steel sheets, blocks and cut-to-size pieces Lifting of sections, beams and structural components Handling of round timber and cylindrical workpieces Operation of machine tools, saws and cutting stations Loading and unloading of materials in warehouses and production facilities Contents of the package Neo permanent magnet Operating instructions Test certificate Parameters Model W (mm) L (mm) H (mm) Eye diameter (mm) Weight (kg) Workload limit flat materials (kg) Workload limit round materials (kg) Min/max diameter (mm) NEOL150 60 93 120 10 3 150 65 50/100 NEOL300 100 152 180 16 10 300 150 60/200 NEOL600 120 246 180 20 21 600 300 65/270 NEOL1000 146 306 236 20 40 1000 500 100/300 NEOL1500 165 374 273 20 69 1500 750 150/350 NEOL2000 165 478 273 20 90 2000 1000 150/350

Read more less

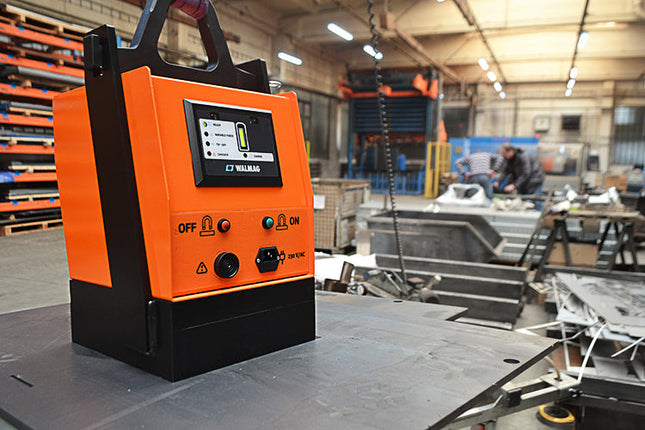

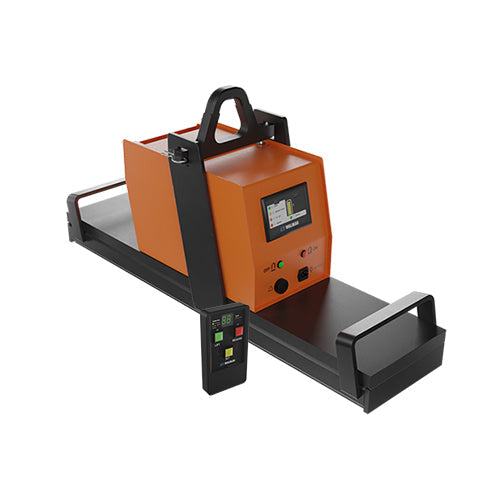

BM battery-powered lifting magnets offer a flexible solution for handling ferromagnetic materials without the constraints of power cables. The integrated battery and remote control allow for convenient operation even in places where it is not suitable or possible to use conventional electromagnets with a continuous power supply. The magnet is equipped with safety features to prevent accidental deactivation during handling, as well as a system providing both visual and audible battery status indicators. Thanks to its high load capacity and robust construction, it is suitable for everyday use in demanding industrial environments. Key specifications: Applications: Lifting and handling of ferromagnetic materials Technology: Battery-powered electromagnet Power supply: built-in 12V battery Battery life: up to 8 hours at a 50% duty cycle Load capacity: up to 5,000 kg Maximum sheet metal thickness: 3 mm Maximum material temperature: 50 °C Safety factor: 2:1 Warranty: 1 year Applications: Handling of sheet metal, cut-to-size pieces and steel blocks Loading and unloading of metallurgical material Operation of burning, cutting and machining equipment Handling of thin sheet metal from 3 mm thick Operations where the use of power cables is not suitable Steelworks, warehouses, service centres and manufacturing facilities Package contents: BM battery-powered magnet Operating instructions IR remote control Test certificate Parameters: Model Lifting capacity for flat material (kg) W x L of base (mm) H (mm) Weight (mm) Built in battery Type of battery BM1350 1350 242 x 272 508 60 12V/35Ah FG12 - 35D BM2500 2500 242 x 400 512 72 12V/75Ah FG12 - 75D BM3600 3600 240 x 1050 512 180 12V/75Ah FG12-75D BM5000 5000 300 x 1200 527 203 12V/75Ah FG12-75D

Read more less

The Neo Hot permanent load-handling magnet is a high-temperature variant of the tried-and-tested Neo range. It is designed for handling ferromagnetic materials where the load temperature exceeds the capabilities of standard permanent magnets. Thanks to special magnetic materials, it enables the safe handling of materials at temperatures of up to 180 °C without compromising on safety or operator comfort. Like other magnets in the Neo range, it is equipped with the Easy Switch system for convenient one-handed operation. Each magnet undergoes testing using the Air Gap Test method, which simulates real-world conditions and verifies its safe operation. Its robust construction and safety rating of 3+ in accordance with EN 13155 ensure reliable operation even in demanding industrial environments. Unique features: Easy Switch: The ergonomic control lever allows for quick and convenient switching of the magnet on and off, even during frequent use. Air Gap Test: Each magnet is tested using an air gap, which simulates real-world operating conditions and verifies safe operation. Stainless steel lifting eye: The durable stainless steel lifting eye ensures a long service life even in demanding industrial environments. Safety factor 3+: The magnet complies with the requirements of standard EN 13155 and provides a high level of safety during handling. Capacity table directly on the magnet: Load capacities and operating parameters are always easily accessible directly on the unit. Compact design: High load capacity combined with low weight facilitates handling and expands the range of applications. 5-year warranty: We provide a 5-year warranty on the magnetic system. Key parameters Applications: Lifting and handling of ferromagnetic materials Technology: Permanent magnet Lifting capacity for flat material: up to 2,000 kg Lifting capacity for round material: up to 1,000 kg Maximum material temperature: 180 °C Safety factor: 3+ in accordance with EN 13155 Warranty on the magnetic system: 5 years Applications Handling of hot cut-to-size sheets, forgings and castings Handling of heated sheet metal, sections and structural components Operations involving higher material temperatures Handling of both flat and circular workpieces Loading, unloading and moving of material in production Contents of the package Neo Hot permanent magnet Operating instructions Test certificate Parameters Model W (mm) L (mm) H (mm) Eye diameter (mm) Weight (mm) Max. tested capacity (kg) Workload limit flat materials (kg) Workload limit round materials (kg) Min/max diameter (mm) NEOL125H 60 93 120 10 3 450 125 40 50/100 NEOL250H 100 152 180 16 10 800 250 125 60/200 NEOL500H 120 246 180 20 21 1600 500 250 65/270 NEOL1000H 146 306 236 20 40 3200 1000 500 100/300 NEOL1500H 165 374 273 20 69 4700 1500 750 150/350 NEOL2000H 165 478 273 20 90 6200 2000 1000 150/350

Read more less

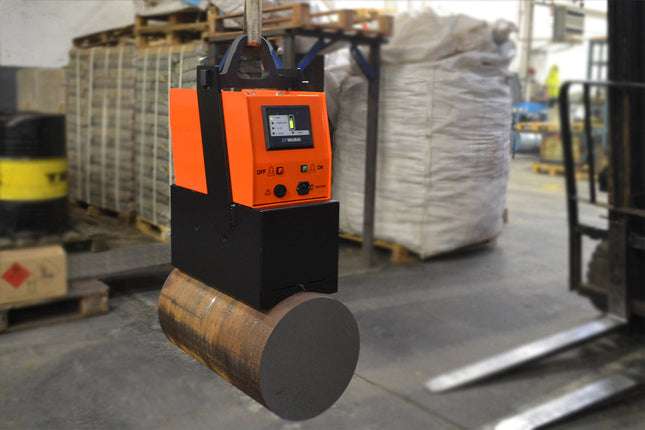

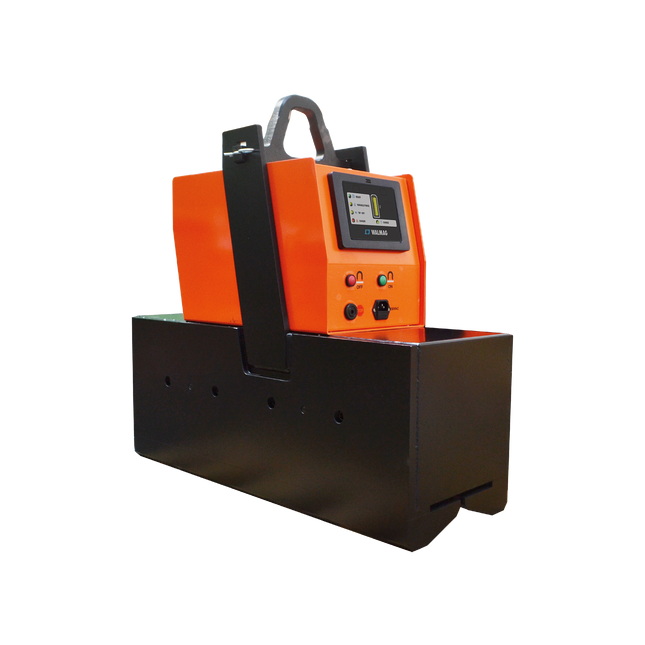

BMP battery-powered lifting magnets are designed primarily for handling round timber, pipes and other circular-section profiles. However, they are also suitable for lifting flat materials, angle sections, profiles and other ferromagnetic loads. The built-in 12V battery enables operation without an external power supply and, in combination with the remote control, ensures convenient and flexible operation. The magnetic field provides a reliable holding force even when handling loads with uneven surfaces or air gaps. Operational safety is ensured by protection against accidental deactivation during lifting, a dual confirmation of the load release function, and a system of visual and audible low-battery warnings. Key specifications: Applications: Lifting and handling of ferromagnetic materials Technology: Battery-powered electromagnet Power supply: Built-in 12V battery Battery life: up to 8 hours at a 50% duty cycle Lifting capacity for flat material: up to 3,600 kg Load capacity for round material: up to 2,260 kg Maximum material temperature: 50 °C Safety factor: 2:1 Warranty: 1 year Applications: Handling of pipes and hollow sections Handling of round timber and circular workpieces Handling of steel bars and section material Handling of loads with uneven surfaces Loading and unloading of metallurgical material Manufacturing plants, warehouses and service centres Package contents: BMP battery-powered magnet Operating instructions IR remote control Test certificate Parameters: Model Lifting capacity for flat material (kg) Lifting capacity for round material (kg) Min/max diameter (mm) W x L of base (mm) H (mm) Weight (kg) Built in battery BMP1800 1800 1130 40/440 242 x 470 659 167 12V/75Ah BMP3600 3600 2260 45/500 262 x 760 713 420 12V/75Ah

Read more less

Neo EP electro-permanent lifting magnets offer an effective solution for the regular handling of sheet metal, cut-to-size parts, castings, forgings and other ferromagnetic materials. The magnet is activated and deactivated electrically via a control panel; however, holding the load does not require a continuous power supply. This technology combines the advantages of permanent magnets and electromagnets – low energy consumption, high operational safety and convenient control without the need for mechanical switching. On request, the magnet can be fitted with a remote control or magnetic force regulation for handling individual metal sheets. Key parameters: Applications: Lifting and handling of ferromagnetic materials Technology: Electro-permanent magnet Lifting capacity for flat material: up to 4,000 kg Maximum material temperature: 80 °C Duty cycle: 100% Safety factor: 3:1 Warranty: 1 year Applications: Handling of sheet metal, cut-to-size pieces and steel plates Handling of forgings, castings and machine parts Operation of cutting, shearing and machining workstations Frequent and repetitive handling in manufacturing facilities Steelworks, warehouses and service centres Loading and unloading of ferromagnetic materials Package contents: Neo EP magnet Test certificate Power cable Operating instructions Parameters Model W (mm) L (mm) H (mm) Number of poles Pole structure Clamping surface (mm) Weight (kg) NEOSQ300 164 164 420 4 50 x 50 116 x 116 23 NEOSQ600 95 420 450 6 50 x 50 52 x 372 31 NEOSQ1000 228 228 295 4 80 x 80 172 x 172 39 NEOSQ4000 228 783 295 16 80 x 80 172 x 724 132

Read more less

The Neo HV lifting arm extends the range of applications for NEO permanent load magnets by enabling the safe positioning of loads between horizontal and vertical positions. It facilitates the handling of sheet metal, panels and other flat workpieces when loading them into machine tools or moving them between workstations. When used in conjunction with a Neo load magnet, it helps to reduce the use of chains, clamping devices and manual handling. This improves workplace safety and facilitates the operation and handling of larger workpieces. The load magnet is not included in the scope of supply and is supplied separately. Key parameters: Applications: Positioning and rotating loads by 90° Technology: Accessories for Neo permanent magnets Load capacity: up to 1,000 kg Load width: 300–1,000 mm depending on the model Safety factor: 3:1 Warranty: 1 year Applications: Loading workpieces into lathes Loading workpieces into horizontal machining centres Rotating loads between horizontal and vertical positions Handling sheet metal, plates and flat workpieces Moving workpieces between production workstations Contents of the package: Lifting arm Test certificate Operating instructions Parameters Model W (mm) L (mm) H (mm) Lifting capacity (kg) Workpiece width (mm) Weight without magnet (kg) LARM250 210 958 244 250 300-800 16 LARM500 210 1158 244 500 300-1000 20 LARM1000 210 1211 297 1000 300-1000 33

Read more less

The GP250 permanent magnet is designed for handling steel sheets and plates and rotating them by 90° between a horizontal and vertical position. It enables the safe positioning of material during loading, unloading and the operation of production equipment. Thanks to the optimised distribution of the magnetic field, the magnet is also suitable for handling thin sheets, which may bend during lifting. The large lifting eye can be secured in a vertical position, enabling safe handling of the load in both directions. As a result, a single magnet can be used both for lifting sheets from a stack and for their subsequent tilting and transport. The magnet’s design complies with the requirements of standard EN 13155 and is engineered with a focus on the safe handling of sheet metal. The magnet is intended for handling flat loads with a smooth, even surface. For handling round bars, sections or loads with an uneven surface, we recommend using permanent magnets from the Neo or Revolift series. Key parameters: Applications: Lifting, handling and rotating sheet metal by 90° Technology: Permanent magnet Horizontal load capacity: 250 kg Vertical load capacity: 80 kg Minimum sheet thickness: 3 mm Maximum material temperature: 80 °C Safety factor: 4:1 Warranty: 1 year Additional information: The GP 250 is suitable for handling flat loads with a smooth, clean surface. In the case of uneven or soiled surfaces, or circular materials such as bars, tubes, etc., we recommend a permanent load magnet from the Neo series. Applications: Handling steel sheets and plates Tilting sheets between horizontal and vertical positions Removing sheets from stacks from a thickness of 4 mm Loading and unloading sheet metal Operating machining, cutting and manufacturing equipment Package contents: GP250 permanent magnet Operating instructions Test certificate Parameters: Model W (mm) L (mm) H (mm) Horizontal limit (kg) Vertical limit (kg) Weight (mm) Tested break away force (kg) GP250 200 288 40 250 80 9,75 1100

Read more less

The MC series of magnetic grippers facilitate the manual handling of steel sheets, cut-to-size parts and other ferromagnetic loads. They help to reduce the physical strain on operators and improve safety when lifting and carrying materials. Their compact design and low weight mean the grip can always be kept to hand. The robust construction ensures a long service life even with daily use in industrial environments. Manual magnetic grips are intended exclusively for manual handling and must not be used as a suspension device for cranes or other lifting equipment. Key specifications: Application: Manual handling of ferromagnetic loads Technology: Permanent magnet Load capacity: up to 90 kg Maximum material temperature: 80 °C Warranty: 2 years Uses: Manual handling of sheet metal and plates Carrying cut-to-size pieces and steel components Removing individual sheets from stacks Handling smaller steel blocks Manufacturing facilities, warehouses and metalworking workshops Contents: MC manual gripper Operating instructions Parameters Model W (mm) L (mm) H (mm) Max. lifting cap./sliding force (kg) Weight (kg) MC-2 150 160 27 60/35 1,4 MC-2S 160 230 24 90/80 2,9
