Permanent magnetic chuck Neomill

    Product form

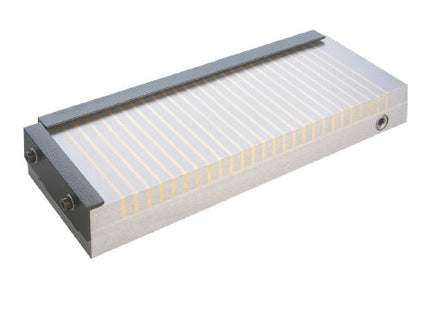

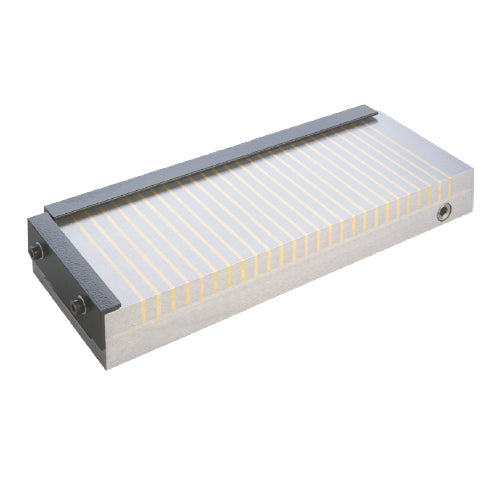

    Permanent magnetic chuck Neomill

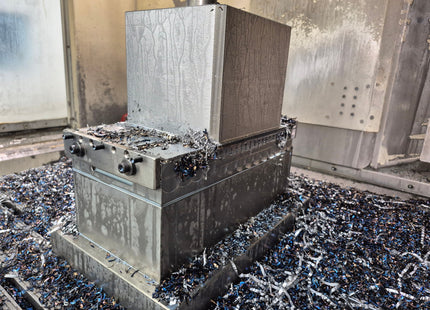

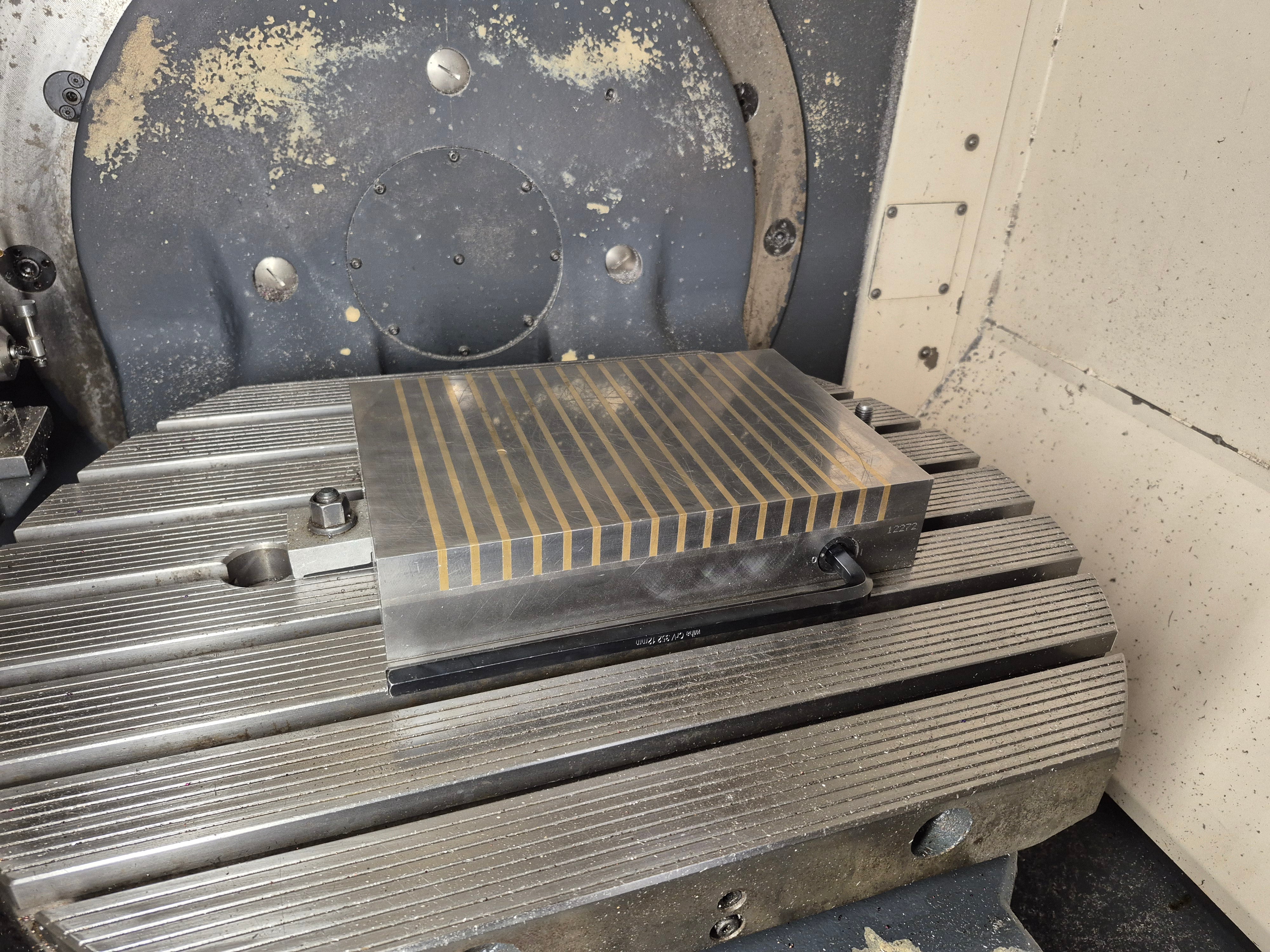

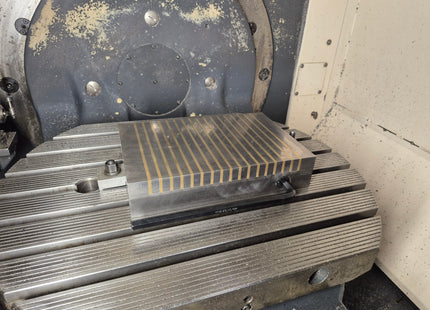

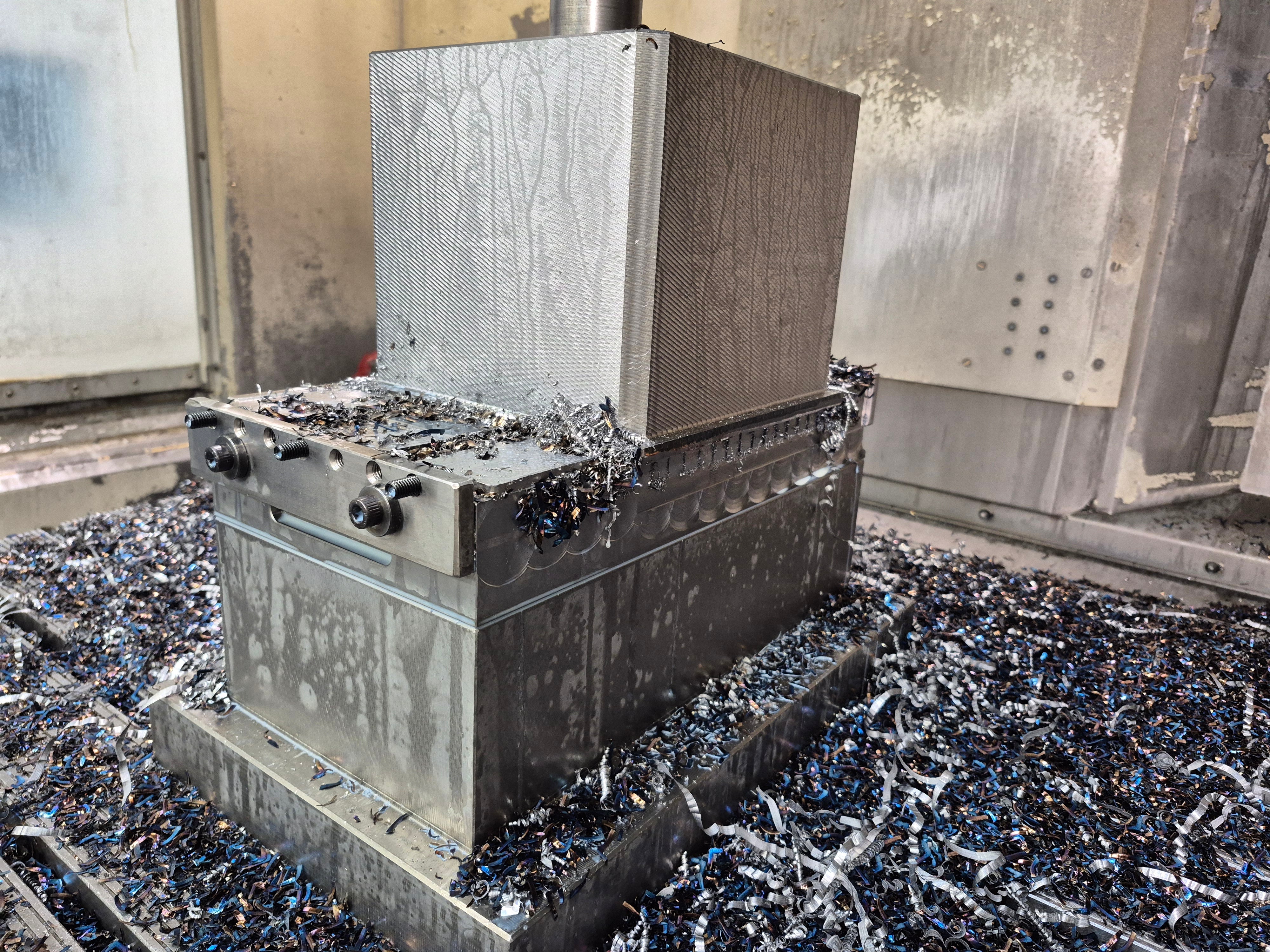

      Use this magnetic chuck for milling, drilling, planing, and heavy grinding. With a clamping force of up to 160 N/cm2, it can handle even the toughest operations. It is also suitable for machining without cooling.

      Do you need help?

      Marek Caletka

      Marek Caletka

      +420 734 698 768

      Send inquiry
      We'll get back to you within 24 hours
      Create inquiry

      Create inquiry

      Product
      Permanent magnetic chuck Neomill

      How does magnet rental work?How does magnet rental work?

      We will gladly lend you a magnet for 14 days free of charge; you only pay for the shipping costs to you and back. Please inquire about the current availability of specific sizes in advance and send us your request via the inquiry form.

      Where can I find the product price?Where can I find the product price?

      We will be happy to prepare an exact price offer for you based on your non-binding inquiry. If you prefer a personal consultation, you can also directly contact our sales representatives, whose phone numbers can be found in the Contactssection.

      Product description

      Detailed description:

      This top plate has a solid waterproof construction and its clamping force of up to 160 N/cm2 ensures high workpiece stability even in the most difficult operations, such as milling, grinding, drilling, and planing.

      Important parameters:

      • Application: Milling
      • Technology: Permanent
      • Clamping force: 160 N/cm2
      • Min. workpiece size: 25 x 25 x 6 mm
      • Pole pitch: T15 11+4 mm - steel/brass
      • Poles: Transverse
      • Guarantee: 2 years

      Use:

      • Milling
      • Grinding
      • Drilling
      • Planing

      Package content:

      • Side and end stop blocks
      • Set of clamps

      Parameter

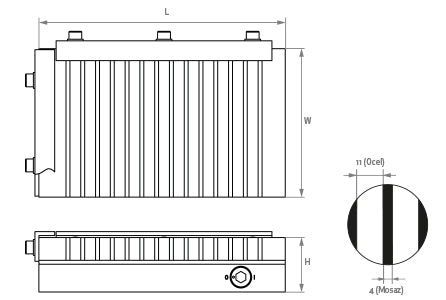

      Catalog number W (mm) L (mm) H (mm) Weight (kg)
      NEOM150250 150 250 55 17
      NEOM150300 150 300 55 20
      NEOM150350 150 350 55 23,5
      NEOM150450 150 450 55 31
      NEOM200300 200 300 60 30
      NEOM200400 200 400 60 39
      NEOM200450 200 450 60 43
      NEOM200500 200 500 60 48
      NEOM200600 200 600 60 55
      NEOM250400 250 400 65 50
      NEOM250500 250 500 65 52
      NEOM250600 250 600 65 85
      NEOM300300 300 300 65 44
      NEOM300400 300 400 65 64
      NEOM300500 300 500 65 72
      NEOM300600 300 600 65 87
      NEOM400400 400 400 65 80

      Documents for Download

      Neomill Permanent Magnetic Chuck for Heavy Milling and Grinding

      The Neomill permanent magnetic chuck is a high-performance and structurally stable solution for effective fixation of ferromagnetic workpieces during milling, drilling, planing, and heavy surface grinding. This chuck excels in extreme rigidity, with the pole plate, frame, and steel body of the magnet being firmly mechanically connected into a single monolith. Thanks to this, it reliably withstands high forces during chip machining and dampens vibrations. Because it does not require an electrical connection for operation, it functions completely autonomously and generates no internal heat. This completely eliminates thermal expansion, ensuring constant dimensional and shape accuracy of workpieces without any risk of their release during a power outage.

      Extreme clamping force of neodyme with optimal transverse poling

      The main advantage of the Neomill series from the traditional Czech manufacturer Walmag is its top-of-the-line magnetic system equipped with very strong neodymium magnets, which generate an enormous clamping force of up to 160 N/cm². This is up to 80% more than conventional magnetic chucks with fine pole pitching. The top plate features specific cross-pole pitching with a pole spacing of 11 mm steel and 4 mm brass (or epoxy), which ensures safe and deep penetration of the magnetic field even into materials with rougher surfaces. The completely waterproof construction reliably withstands the aggressive effects of cooling emulsions and hot metal chips. With robust mechanical switching and a high limit for repeated regrinding, you gain a durable and virtually maintenance-free device for your tool shop or CNC operation, with guaranteed stability for a wide range of workpiece sizes.

      Do you need help?

      Marek Caletka

      Marek Caletka

      +420 734 698 768

      Send inquiry
      We'll get back to you within 24 hours
      Create inquiry

      Create inquiry

      Product
      Permanent magnetic chuck Neomill

      Walmag products are in companies such as

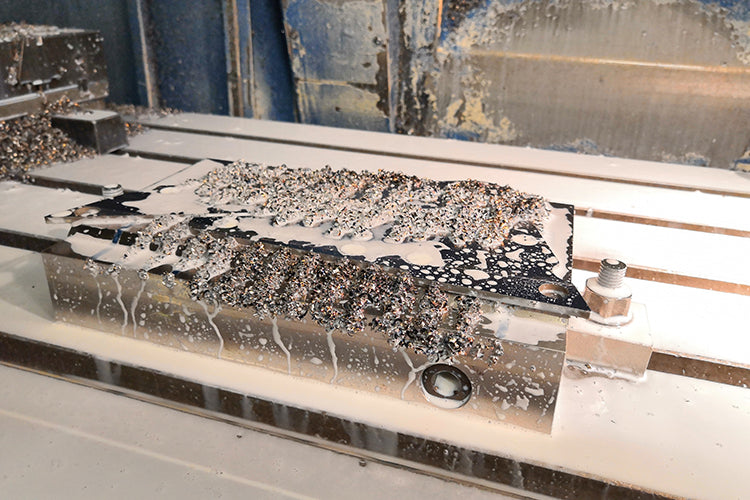

      neomillcom_10_Neomill Compact.jpg

      Neomill and AR-STAL

      At the MSV trade fair in Brno, I came across your company Walmag, and when you explained the capabilities of your clamping systems and offered a free trial of any magnetic chuck, I didn't hesitate and went to try it out. Already when first clamping a workpiece to the chuck, I sensed a difference from the original one (even after a slight tap on the workpiece, it didn't budge an inch). The results of the chuck testing made me extremely happy; its added value for our production was absolutely clear. We immediately acquired a Neomill magnetic chuck in size 600x200, thanks to which we are now able to easily produce even workpieces that previously posed problems with their clamping. The biggest advantages of the chuck: speed of clamping the workpiece, ability to clamp even irregular shapes, enormous holding force. What amazed me as a customer was your company's approach. We had a magnetic chuck borrowed from you, and when we ordered "our own," I was told that you would let us keep your magnet on loan until delivery – and that's something you don't see very often these days.

      Thank you very much for your approach and we wish you many satisfied customers. We are certainly among them.

      Zbynek Abrham from AR-STALHead of Production

      Service directly in the Czech Republic

      As one of the few companies on the market, we provide complete service, overhauls, and repairs for all our products. We also don't refuse inspections and testing of products from other brands. Our goal is for our magnetic systems to last you as long as possible. Therefore, we provide professional warranty and post-warranty service, repairs, and overhauls of all technologies, as well as operator training.

      Show more

      About Walmag

      Your supplier of magnetic applications for over 35 years
      We are a Czech manufacturer of high-quality lifting magnets, magnets for machining workholding, and demagnetizers. We offer warranty and post-warranty service, repairs, and overhauls of all our technologies.

      More about us

      Why Walmag?

      • We've been manufacturingmagnets in Czechia since 1991

      • We manufactured90,000+ magnets

      • We service magnetsdirectly in Kroměříž

      • Our magnets are in morethan 61 countries worldwide

      Frequently Asked Questions (FAQ)

      Are your products made in the Czech Republic?Are your products made in the Czech Republic?

      Yes, the entire process – from in-house development through design, production, to final assembly and testing – takes place directly in our plant in Kroměříž. This gives us full control over quality and allows us to flexibly tailor products to specific customer requirements.

      What is the difference between permanent, electromagnetic, and electro-permanent systems?What is the difference between permanent, electromagnetic, and electro-permanent systems?

      Permanent Magnets: Operate without electricity, activated mechanically by a lever. They are safe, mobile, and maintenance-free.
      Electromagnets: Generate a magnetic field using coils powered by mains electricity. They possess immense strength, can clamp uneven surfaces, and allow force regulation, but require a constant power supply and backup sources.
      Electro-permanent Magnets: Combine the advantages of both systems. They only require electric current for a fraction of a second for activation (magnetization) and deactivation. During operation itself, they do not need current, making them extremely safe even in the event of a power outage and preventing overheating.

      Can your lifting magnets also be used for handling materials at high temperatures?Can your lifting magnets also be used for handling materials at high temperatures?

      Conventional permanent magnets lose their strength at temperatures above 80 °C. However, for operations with higher temperatures, we offer special series (e.g. HOT lifting magnets) that can safely handle materials with temperatures up to 180 °C.

      Why is it necessary to use a demagnetizer after machining?Why is it necessary to use a demagnetizer after machining?

      Ferromagnetic materials retain residual magnetism after being exposed to a magnetic field (e.g., when clamped onto a magnetic chuck). This causes metal chips and dust to stick to the workpiece, which can damage tools or complicate further processing (e.g., painting, welding). Demagnetizers reliably remove this residual magnetism.

      Do you provide service and revisions for your products?Do you provide service and revisions for your products?

      Yes, for all our technologies, including older BUX, Walker, and Pilana brand products, we provide complete warranty and post-warranty service, repairs, overhauls, and original spare parts. We also perform mandatory periodic certifications, inspections, and load capacity testing of lifting magnets.

      Do you also offer staff training?Do you also offer staff training?

      Yes. As part of the delivery of our magnetic applications and large systems, we provide professional operator training to ensure that working with magnets is as efficient and safe as possible.

      How can I contact you if I am interested in a tailored solution?How can I contact you if I am interested in a tailored solution?

      You can contact us by e-mail at info@walmag.cz, by phone at +420 573 341 641, or directly contact our regional sales managers for the Czech Republic and abroad, whose contact details can be found in the Contact section of our website.

      How is heavy goods (e.g. clamping plates) delivered?How is heavy goods (e.g. clamping plates) delivered?

      Due to the higher weight of our products, we cooperate with specialized pallet and parcel carriers who ensure safe handling.

      How is the safety of lifting magnets purchased from the e-shop guaranteed?How is the safety of lifting magnets purchased from the e-shop guaranteed?

      All lifting magnets comply with the strict ČSN EN 13155 standard and operate with a safety factor of 3+. This means that in a pull-off test (the so-called Air Gap test, which simulates a real air gap/dirt in operation), the magnet can lift more than three times its declared maximum load capacity.

      Where can I find user manuals and technical documentation?Where can I find user manuals and technical documentation?

      Technical sheets, catalogues, and operating instructions for individual products are available either on the product's page or upon request.
