Product description
Detailed description:

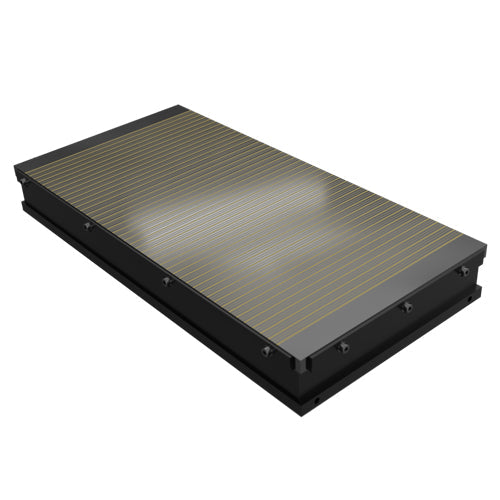

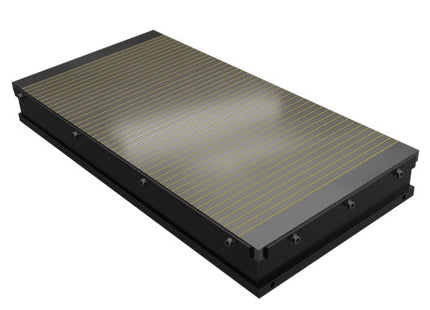

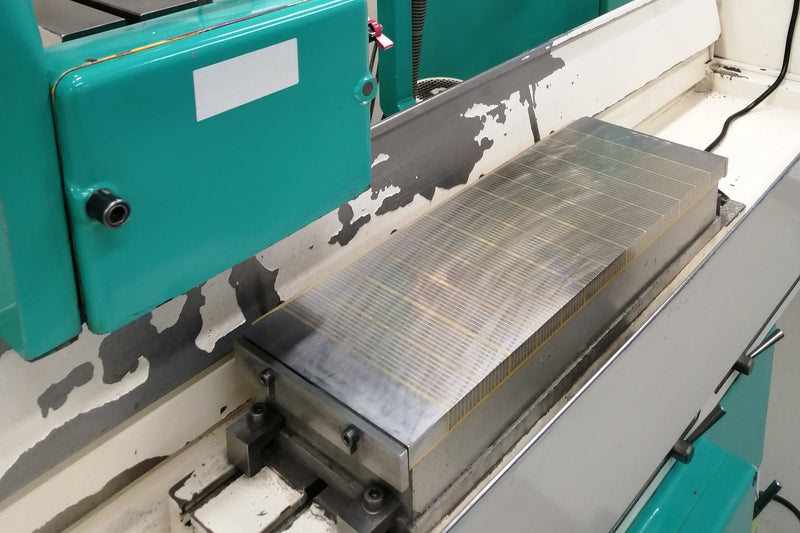

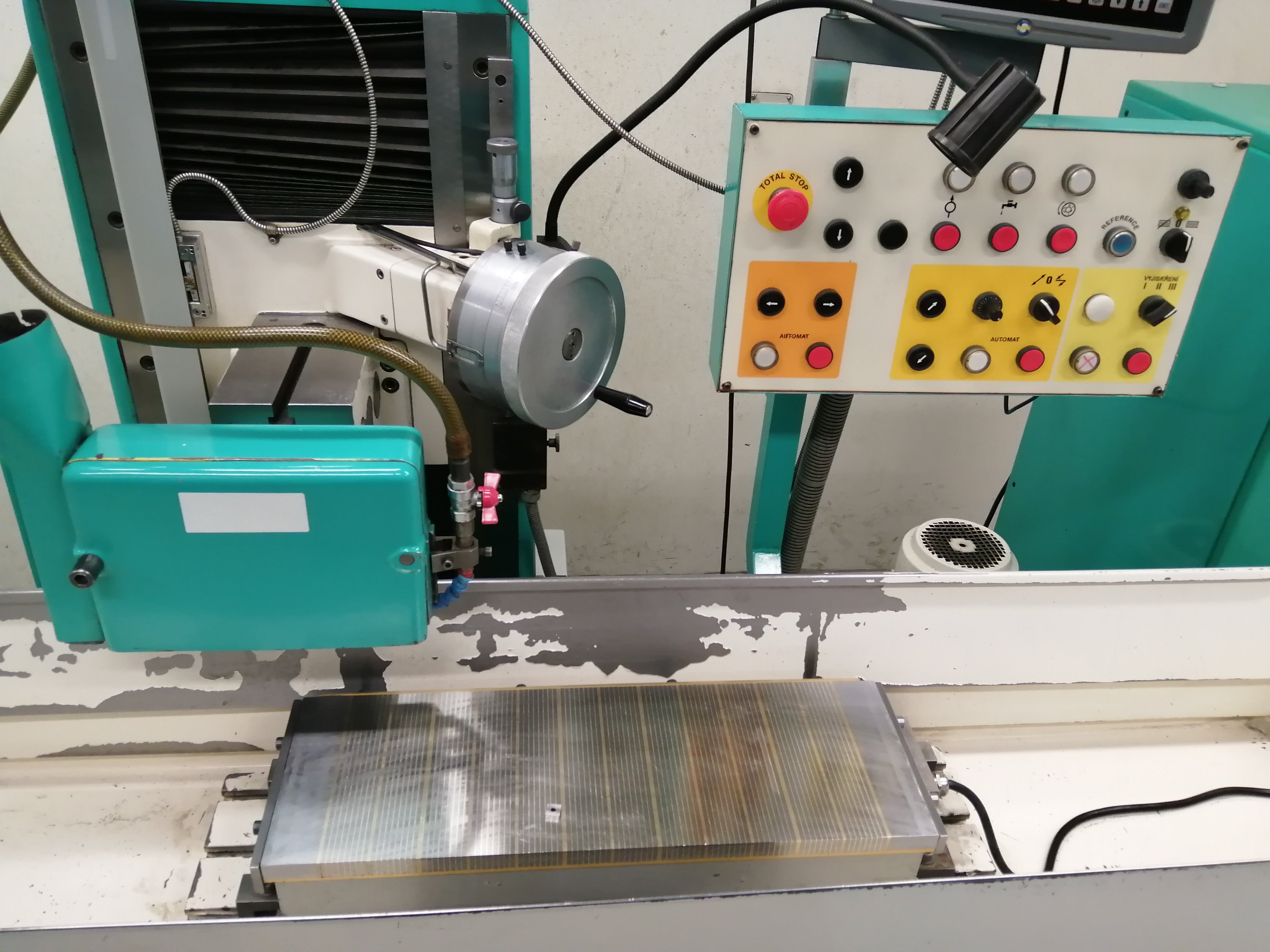

The BJP is one of the most versatile electromagnetic chucks. The coils are arranged in the chuck for maximum utilisation of their capacities. The BJP generates a high and uniform holding force with minimum warming of the working area. The electromagnetic chuck is easy to use due to the control unit. Simply press the button or turn the disconnect switch. You can adjust the magnetic holding force easily to create the ideal operating conditions. This operation can be partly or fully automatic due to the interconnection of a suitable control unit with the chuck and the machine control system. The BJP chucks are fed through the control unit by 110 V DC. Besides fluent regulation of the holding force, this unit also offers automatic demagnetization so that no residual magnetism remains in the workpiece after unclamping.
Important parameters:
- Application: Grinding
- Technology: Electromagnet
- Holding force: 130 N/cm2
- Min. workpiece size: 35 x 35 x 3 mm
- Poles: Transverse
- Regrinding limit: 7 mm
- Pole pitch: 42 mm, further refined 4+1 steel/brass
- Guarantee: 2 years
Additional information:
Consult our technicians on the selection of a suitable control unit and electrical connection.
Use:

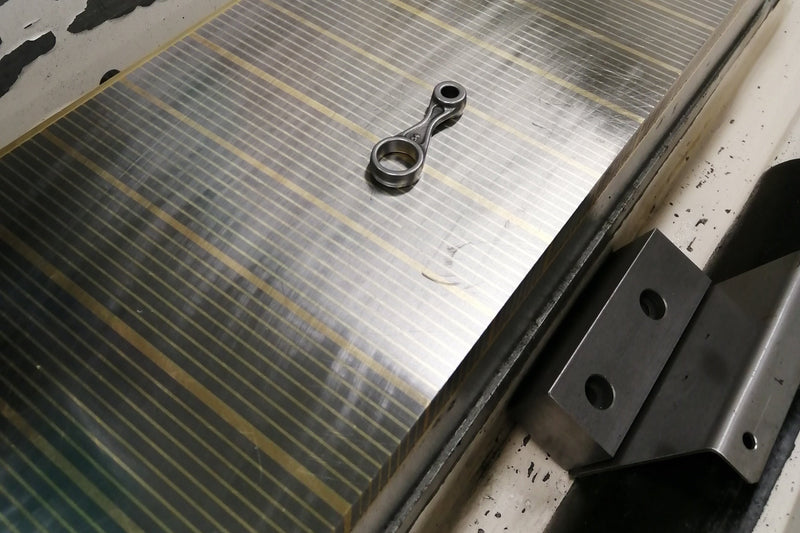

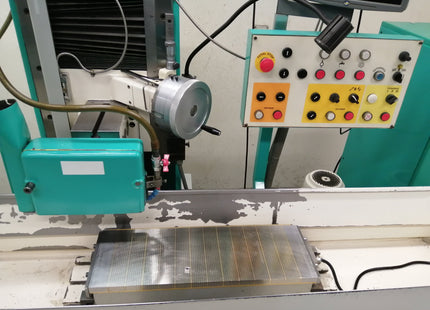

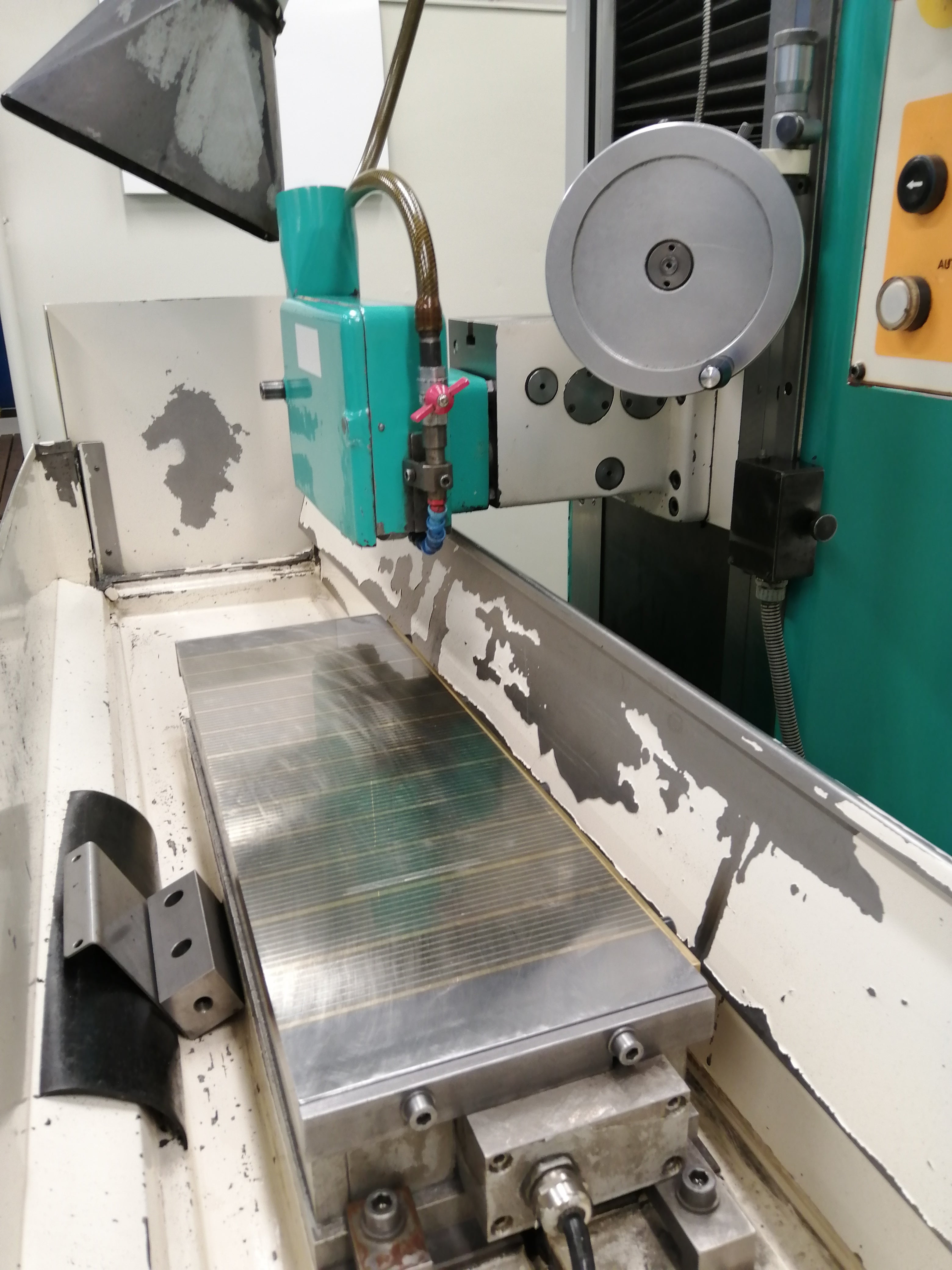

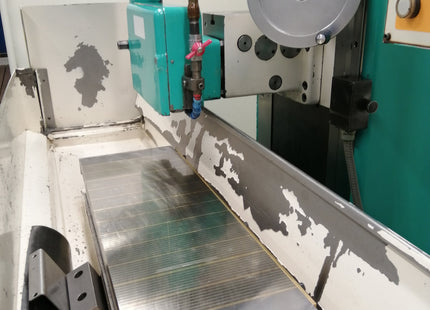

- Heavy duty grinding for a wide range of workpiece sizes
Scope of supply:
- Magnetic chuck
- Rear and side stop blocks
- Power supply cable
- Certificate
- Instructions for use

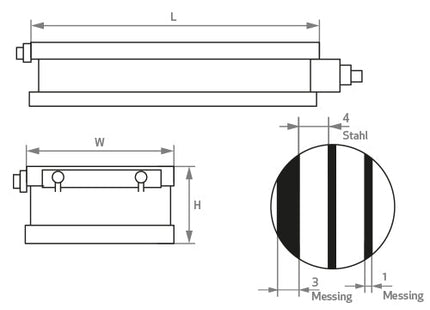

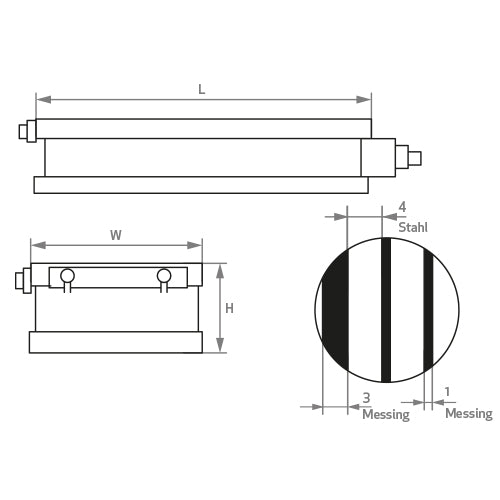

Parameters:
| Model | W (mm) | L (mm) | H (mm) | Wattage (W) | Weight (kg) |
|---|---|---|---|---|---|
| BJP200600 | 200 | 600 | 98 | 160 | 77 |
| BJP300600 | 300 | 600 | 98 | 215 | 118 |
| BJP400800 | 400 | 800 | 100 | 350 | 212 |
| BJP3001000 | 300 | 1000 | 103 | 350 | 201 |
| BJP4001000 | 400 | 1000 | 103 | 435 | 269 |
| BJP5001000 | 500 | 1000 | 108 | 530 | 352 |
| BJP6001000 | 600 | 1000 | 113 | 620 | 420 |
Documents for Download
Traditional and proven BJP electromagnet for precision grinding
Optimal transverse polarization for stable workpiece fixturing
Robust waterproof construction with high regrind limit
