Electro-permanent circular magnetic chuck Circu EP
Electro-permanent circular magnetic chuck Circu EP
Do you need help?
Product description
Detailed description:

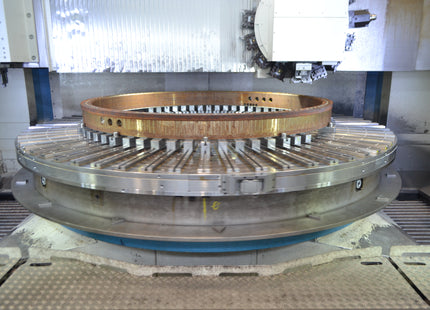

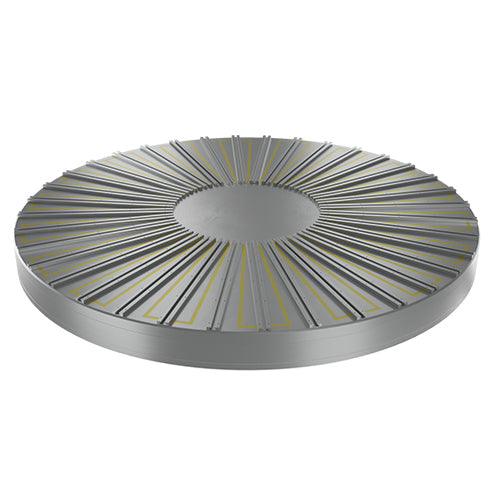

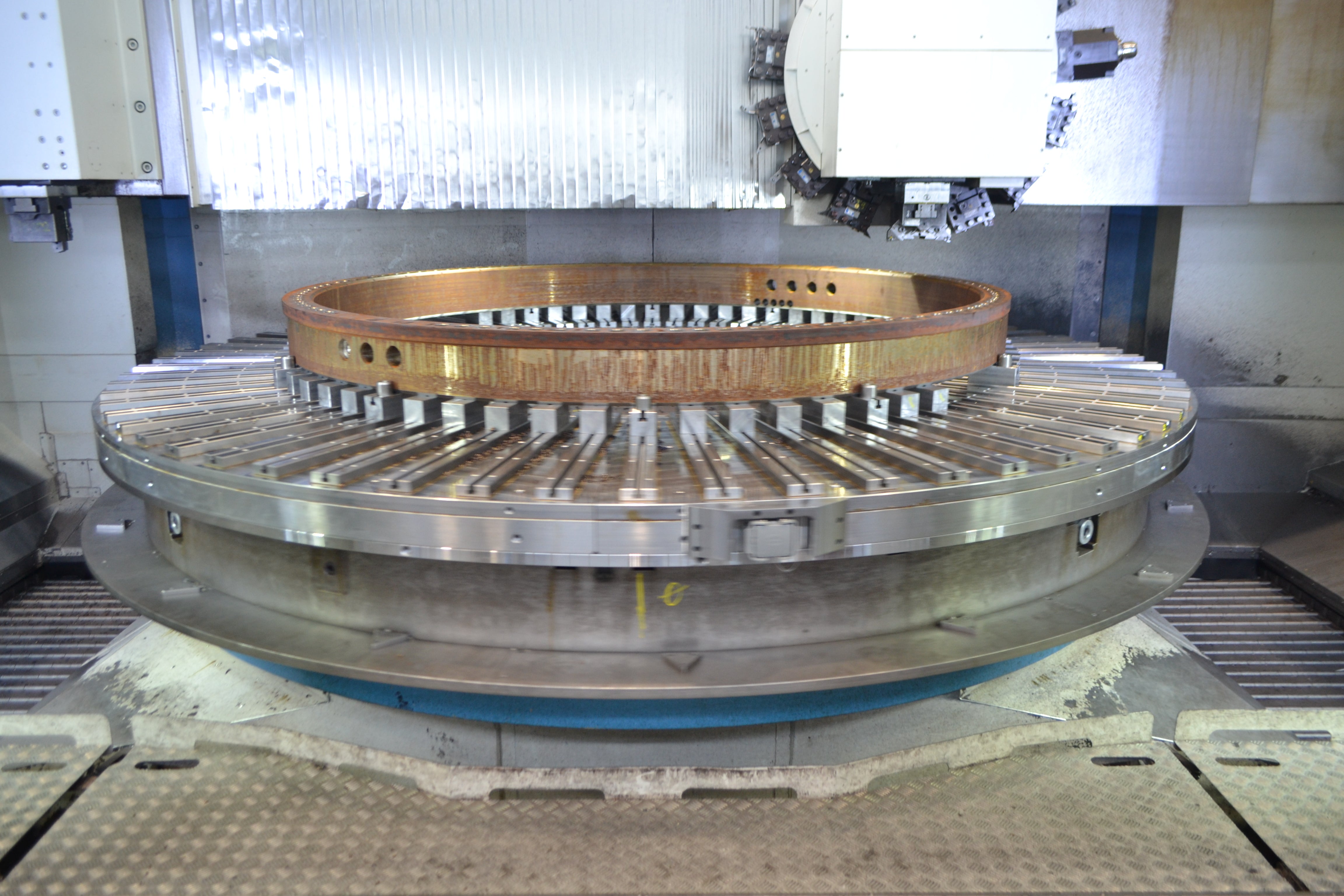

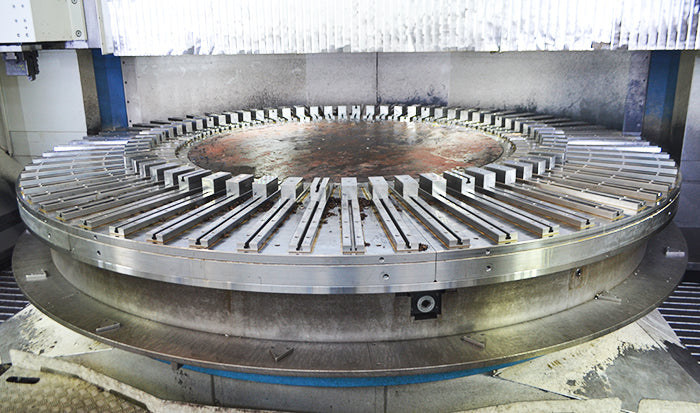

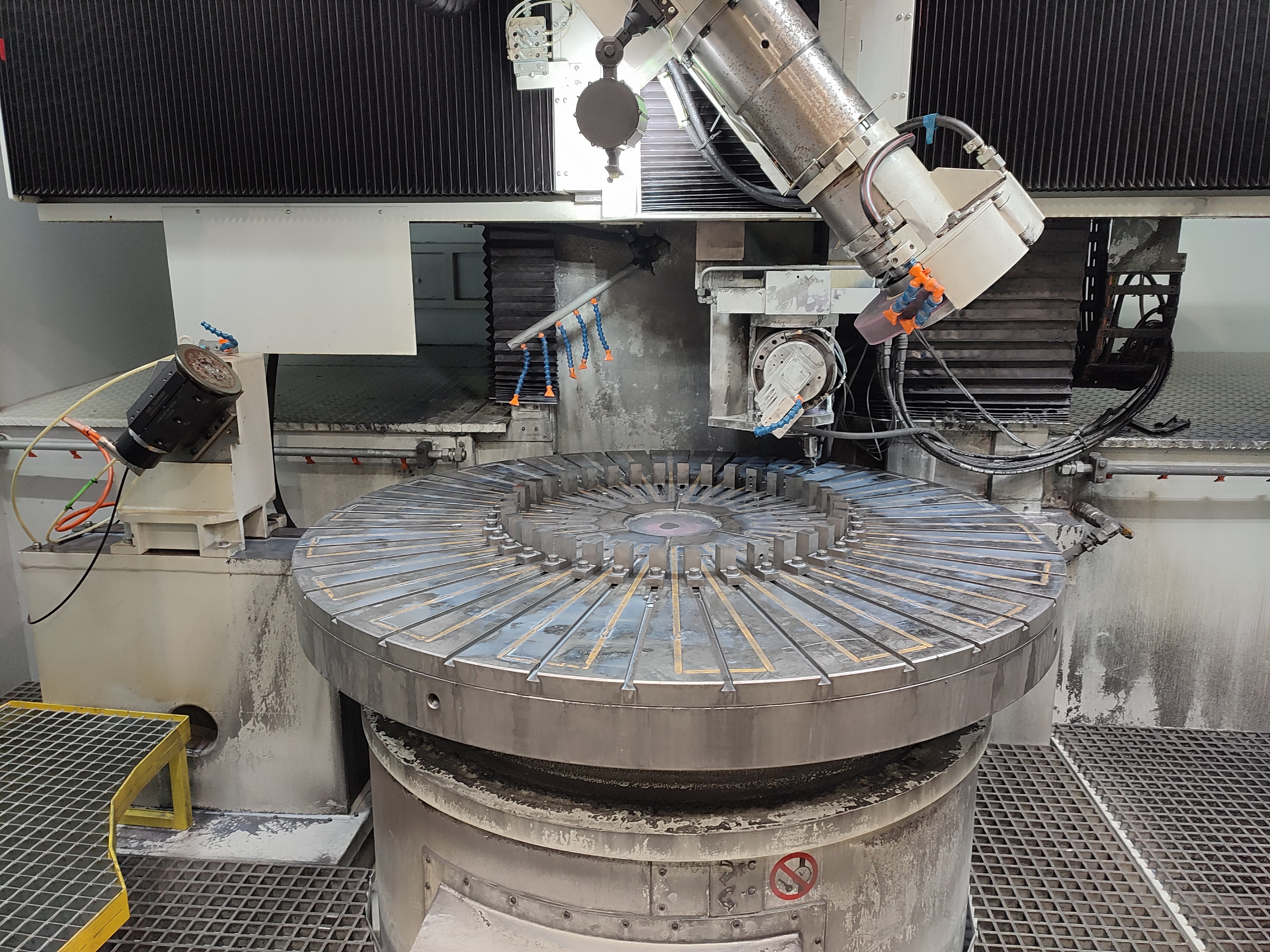

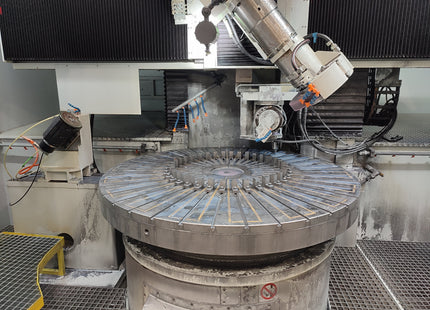

The Circu EP is an electro-permanent magnetic chuck designed for installation on rotary tables of vertical grinders for clamping of tool and hardened steels and for heavy duty turning operations. The radial layout of the individual poles is suitable for work with circular or cylindrical shapes such as bearing rings, circular rings, bushings, etc. Using the control unit, the holding force can be controlled in several steps and fast and efficient demagnetization of workpieces can be performed. Thanks to the electro-permanent technology used there is no need for permanent connection to the mains. This results in high efficiency in operation and this also ensures the highest possible clamping accuracy.
Important parameters:
- Technology: Electro-permanent
- Poles: Radial
- Regrinding limit: 8 mm
- Guarantee: 2 years
Additional information:

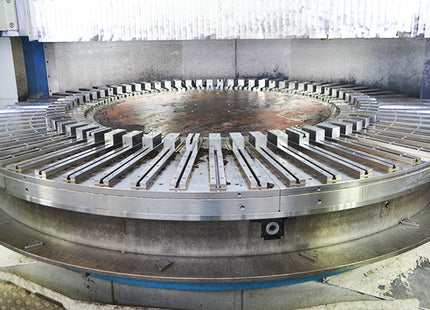

High holding force for clamping during the ultimate heavy duty machining, drilling, and turning operations. Available with pole plate equipped with T-slots for mounting pole extensions. The control unit can be programmed for different types of material to achieve maximum strength and effective demagnetization after machining. At the same time, it is possible to adapt the force to clamp even thinner parts without any deformation. The chuck can be connected via the slip ring in the machine tool spindle, or through the connector located directly on the magnetic chuck.

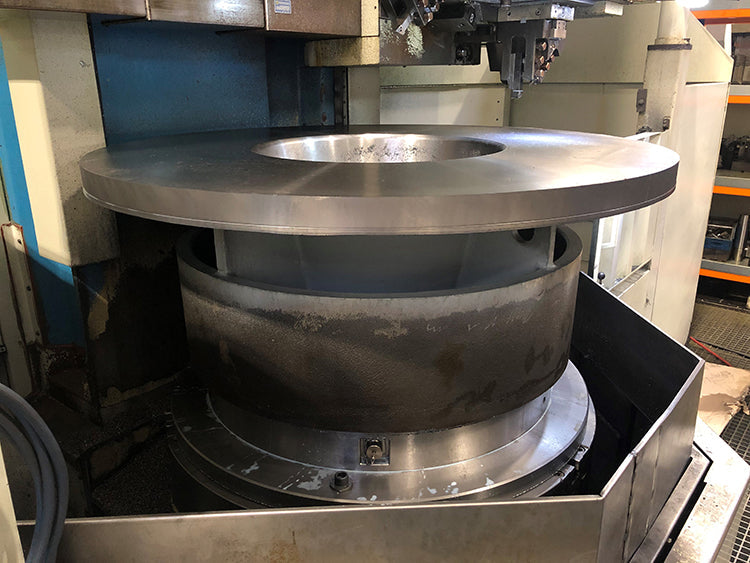

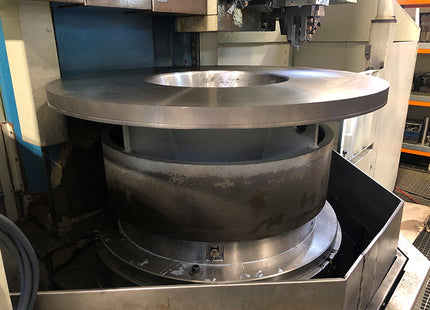

Use:
- circular grinding, roughing, turning

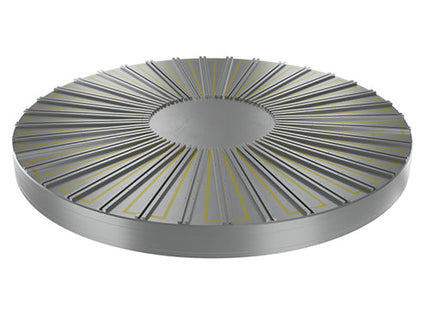

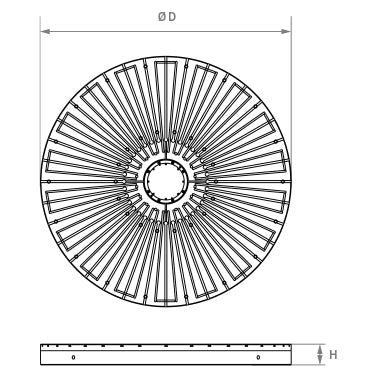

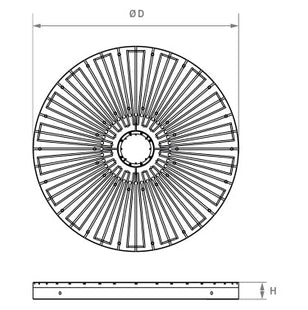

| Catalog number | D (mm) | H (mm) | Weight (kg) | Voltage (V) |
|---|---|---|---|---|
| Circu EP 400 | 400 | 90 | 76 | 170/340 |
| Circu EP 500 | 500 | 90 | 120 | 170/340 |
| Circu EP 600 | 600 | 100 | 195 | 170/340 |
| Circu EP 700 | 700 | 100 | 265 | 170/340 |
| Circu EP 800 | 800 | 100 | 365 | 170/340 |
| Circu EP 1000 | 1000 | 100 | 550 | 170/340 |
| Circu EP 1250 | 1250 | 123 | 990 | 170/340 |
| Circu EP 1500 | 1500 | 120 | 1550 | 170/340 |
Documents for Download
Electro-permanent circular chuck Circu EP for safe and economical rotary table machining
Concentric pole chucking without heating for maximum dimensional accuracy
