Product description
Detailed description:

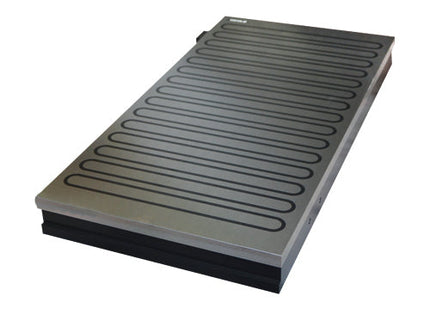

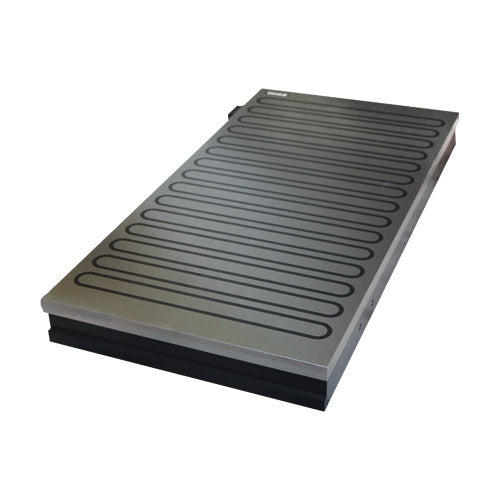

The Elmag Compact is a powerful electromagnetic chuck suitable for flat grinding. The top plate is made of a single compact unit. The insulation between the poles is made of hard epoxy resin filler. The Elmag Compact chuck is delivered with stop bars and a power supply cable as standard.
Important parameters:
- Application: Grinding
- Technology: Electromagnet
- Holding force: 130 N/cm2
- Min. workpiece size: 22 x 144 x 48 mm
- Poles: Oval
- Pole pitch: T48 mm
- Regrinding limit: 8 mm
- Power supply cable length: 6 m
- Guarantee: 2 years
Use:

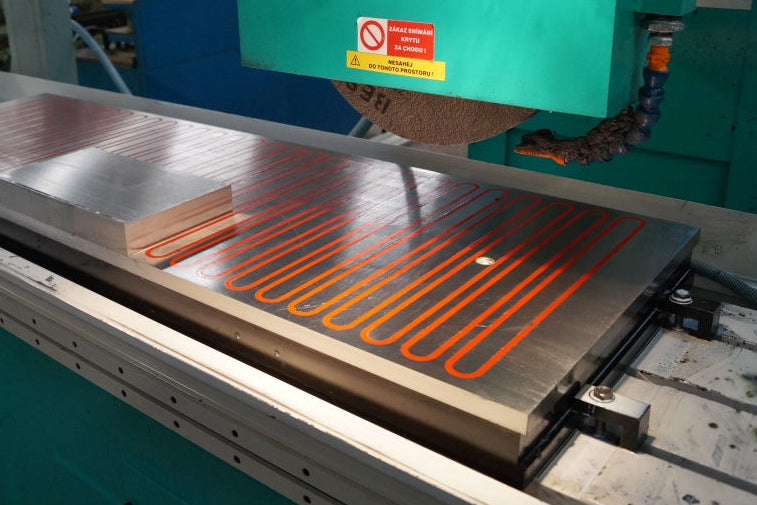

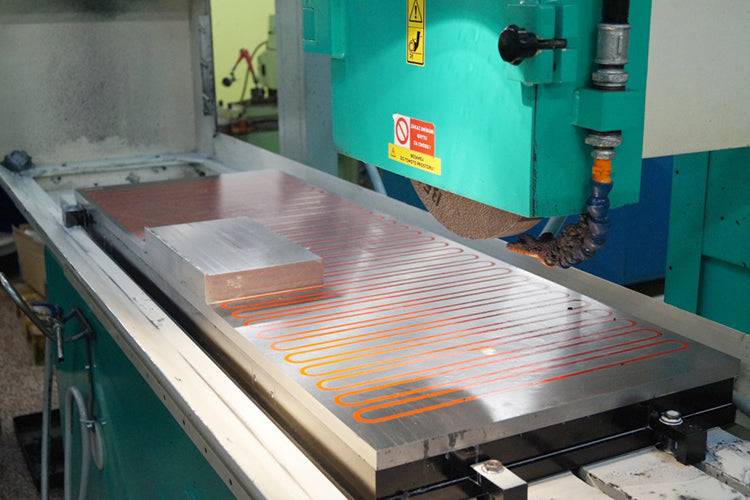

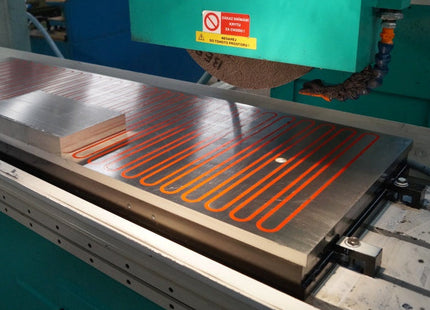

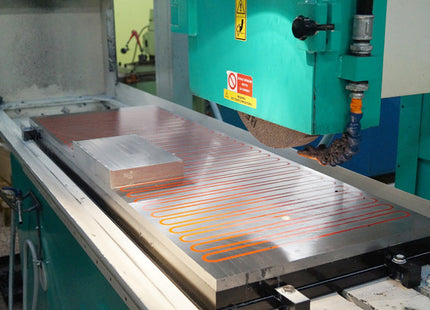

- Clamping of medium to large size parts on grinders Heavy and final surface grinding
Scope of supply:
- Magnetic chuck
- Set of clamps
- Can Power supply cable
- Instructions for use
- Certificate
Parameters:

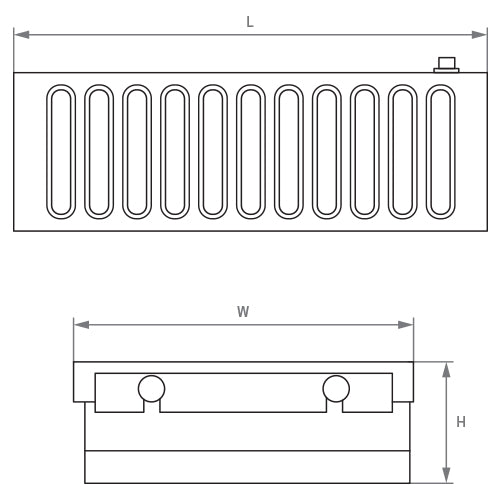

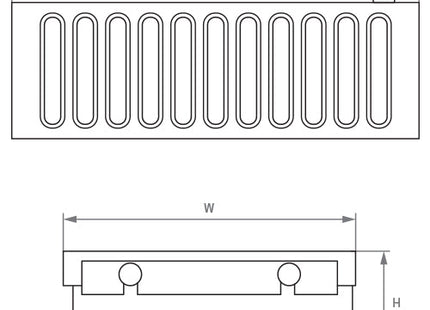

| Model | W (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| ELMG200600 | 200 | 600 | 70 | 60 | ELMG2001000 | 200 | 1000 | 80 | 116 | ELMG2501000 | 250 | 1000 | 79 | 137 | ELMG300500 | 300 | 500 | 70 | 76 | ELMG300600 | 300 | 600 | 70 | 91 | ELMG300800 | 300 | 800 | 70 | 122 | ELMG3001000 | 300 | 1000 | 80 | 174 | ELMG3001500 | 300 | 1500 | 80 | 260 | ELMG400600 | 400 | 600 | 70 | 122 | ELMG400700 | 400 | 700 | 70 | 141 | ELMG400800 | 400 | 900 | 70 | 162 | ELMG6001000 | 600 | 1000 | 80 | 347 | ELMG6001500 | 600 | 1500 | 80 | 533 | ELMG6001500 | 600 | 1500 | 80 | 689 |
