Electrofine magnetic chuck for precise surface grinding
Electrofine magnetic chuck for precise surface grinding
Do you need help?
Product description
Detailed description:

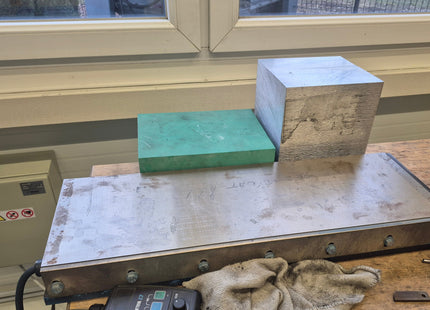

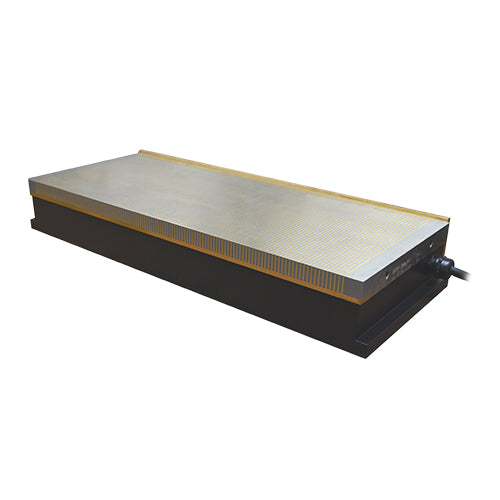

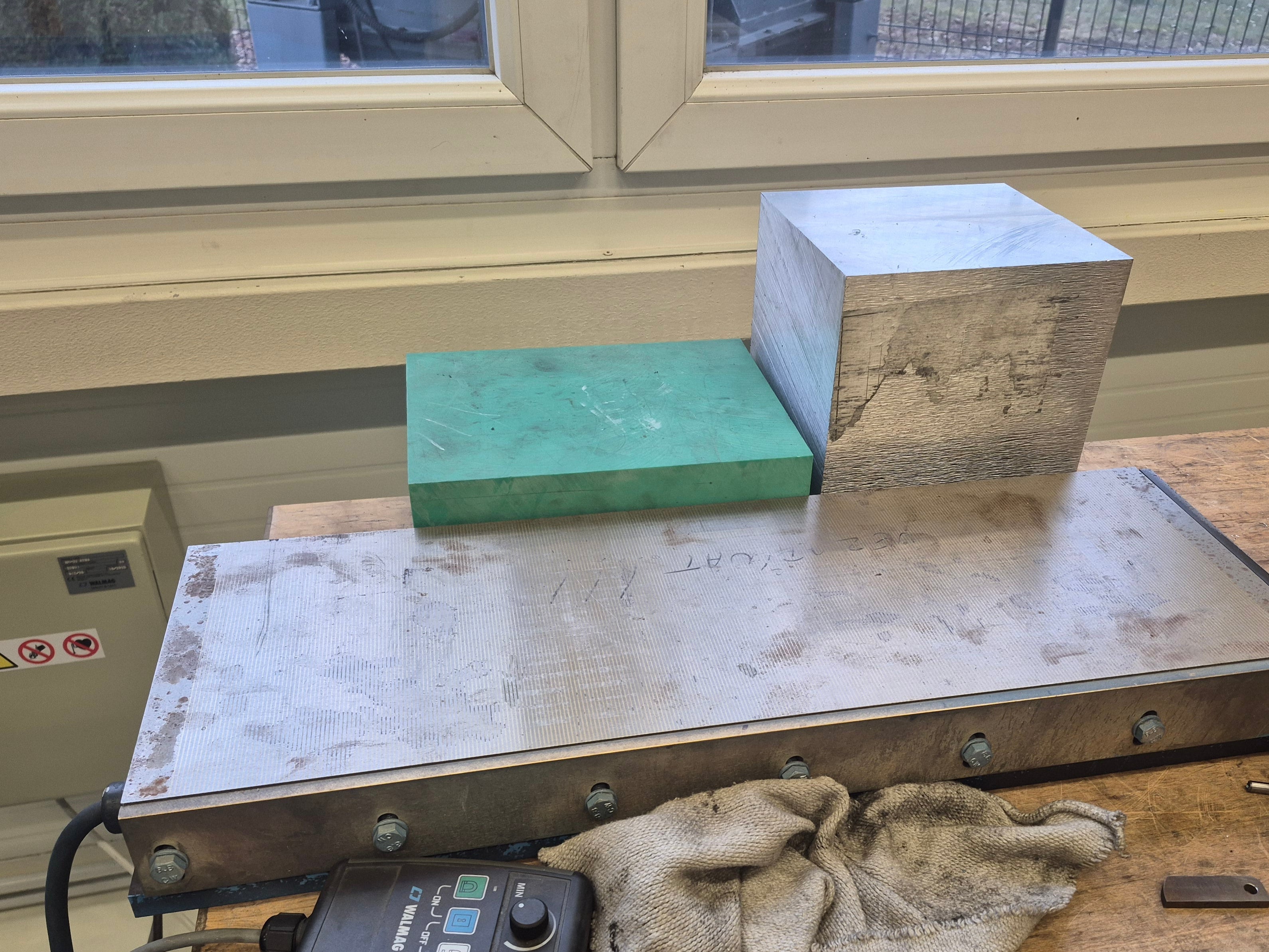

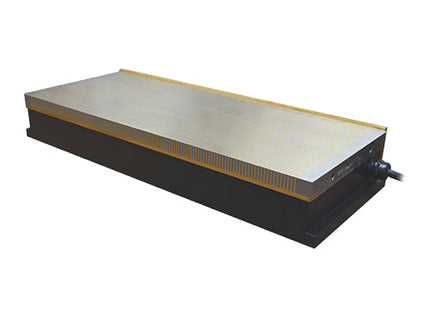

Electrofine is an electromagnetic chuck which, thanks to its design, provides holding force over the entire surface of the top plate. With minimum warming of the working area, you will obtain a unique workpiece clamp for precise grinding. Efficient production is supported by easy operation using the control unit – just press the button or turn the switch to regulate the holding force for ideal conditions in industrial operation. This unit also allows automatic demagnetization so that no residual magnetism remains in the workpiece after unclamping. For efficient clamping of small workpieces during surface grinding, we also offer the Microfine model.
Important parameters:
- Application: Grinding
- Technology: Electromagnet
- Holding force: 110 N/cm2 (Electrofine), 100 N/cm2 (Microfine)
- Min. workpiece size: 25 x 25 x 3 mm (Electrofine), 15 x 15 x 1 mm (Microfine)
- Poles: Transverse/Longitudinal
- Regrinding limit: 6 mm
- Pole pitch: T4 3+1 mm - steel/brass (Electrofine), T1.9 1.4+0.5 mm - steel/brass (Microfine)
- Guarantee: 2 years
Additional information:
Consult our technicians on the selection of a suitable control unit and electrical connection. The Electrofine and Microfine electromagnetic chucks can also be delivered with longitudinal poles. By request, it is possible to deliver products with different dimensions or power supply.
Scope of supply:
- Magnetic chuck
- Side and rear stop blocks
- Set of clamps
- 6 m power supply cable
- Instructions for use
Use:
- For clamping small and large workpieces during precise surface grinding
Parameters
Electrofine

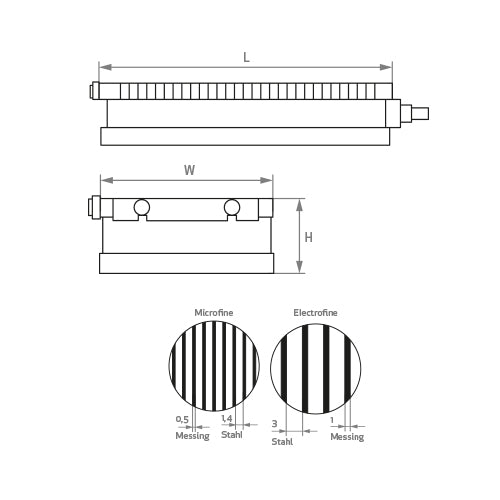

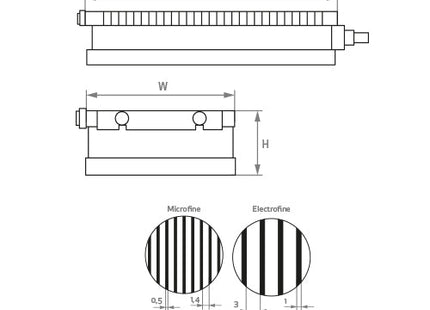

| Model | W (mm) | L (mm) | H (mm) | Wattage (W) | Weight (kg) |
|---|---|---|---|---|---|
| ELEC150300T31 | 150 | 300 | 74 | 77,5 | 25 |
| ELEC200400T31 | 200 | 400 | 74 | 112 | 41 |
| ELEC200500T31 | 200 | 500 | 74 | 166 | 55 |
| ELEC200600T31 | 200 | 600 | 74 | 137 | 65 |
| ELEC300600T31 | 300 | 600 | 74 | 253 | 94 |
Microfine
| Model | W (mm) | L (mm) | H (mm) | Wattage (W) | Weight (kg) |
|---|---|---|---|---|---|
| ELEC150250T1405 | 150 | 250 | 72 | 71 | 19 |
| ELEC150300T1405 | 150 | 300 | 72 | 78 | 22 |
| ELEC200400T1405 | 200 | 400 | 72 | 113 | 39 |
| ELEC200500T1405 | 200 | 500 | 72 | 166 | 52 |
| ELEC200600T1405 | 200 | 600 | 72 | 137 | 61 |
| ELEC300600T1405 | 300 | 600 | 72 | 252 | 97 |
Documents for Download
Electrofine electromagnetic chuck for precision grinding of very thin workpieces
Smooth power regulation and robust waterproof construction
